RAL 7016 - Anthracite Grey
ADB
Aluminium Decking Board – Indirect Fix
£0.00

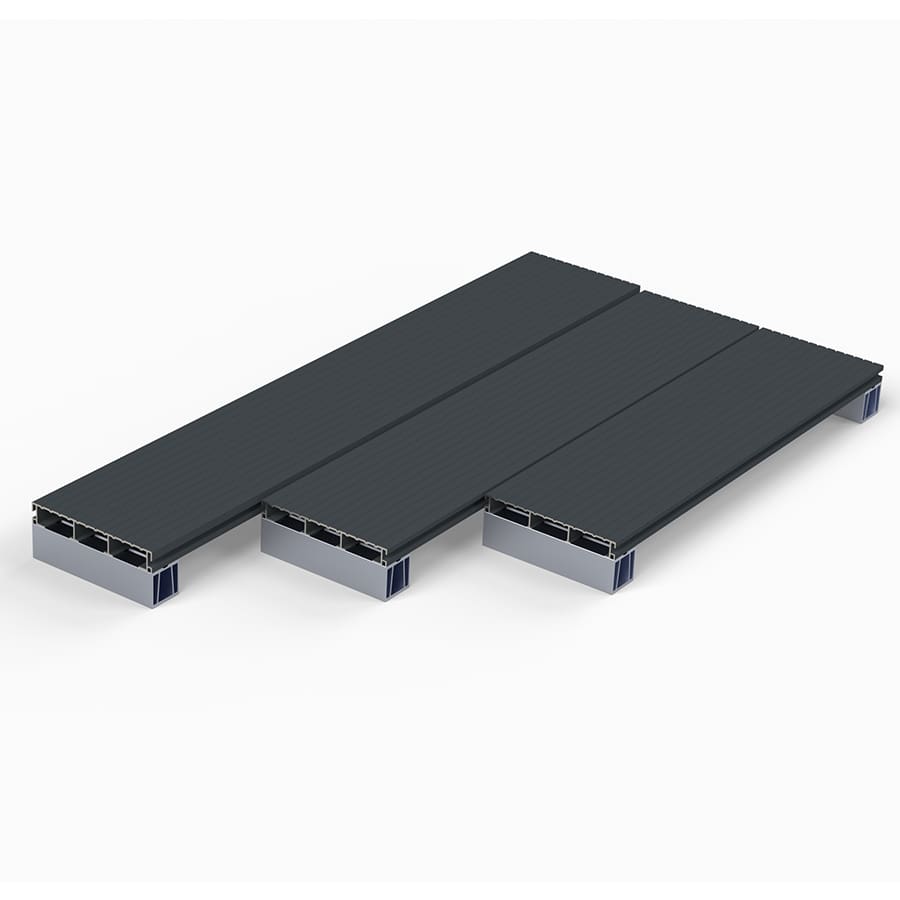

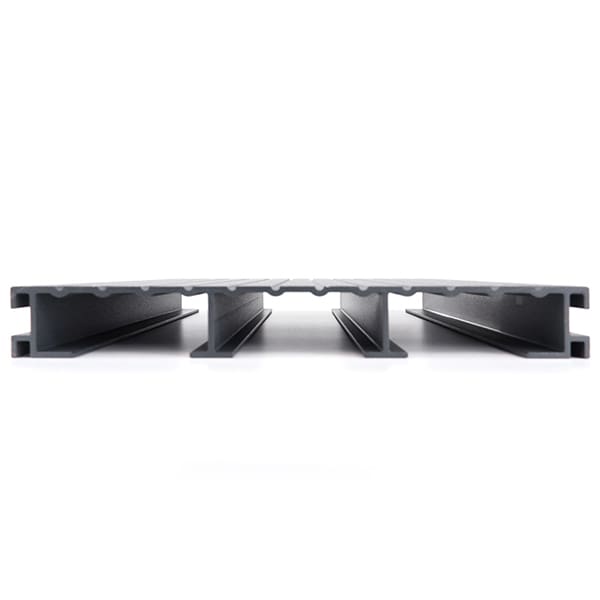

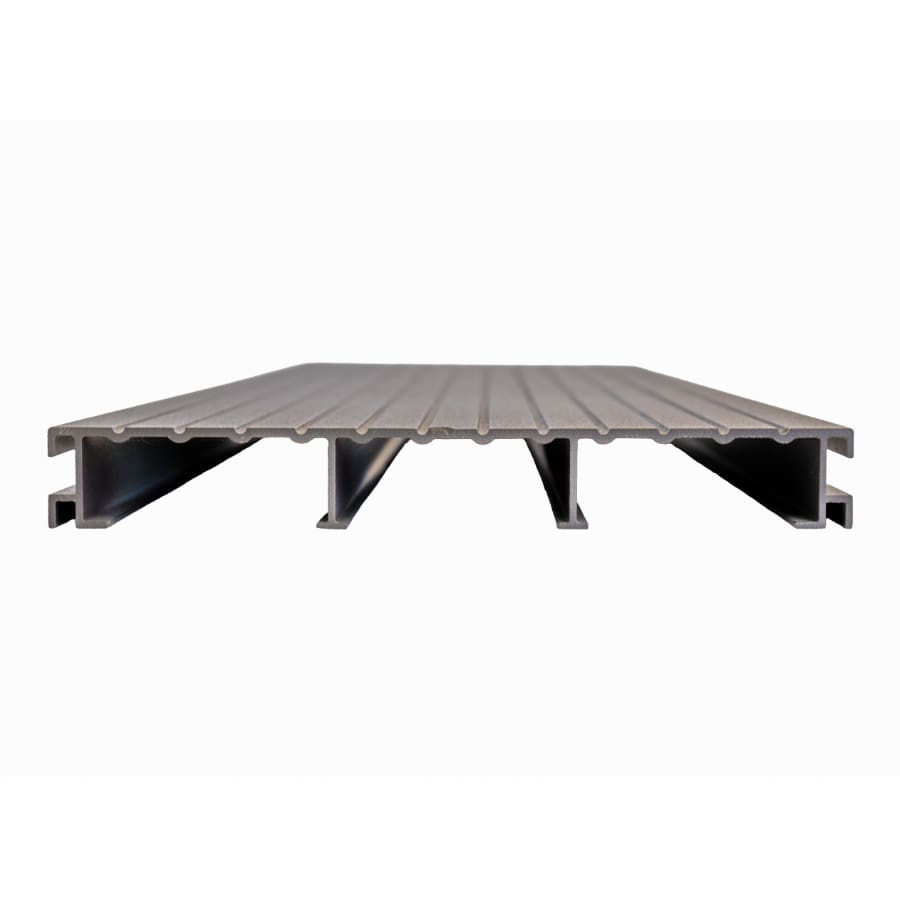

The ADB Aluminium Decking Board – Indirect Fix is a fully non-combustible aluminium decking board designed for seamless integration with the TerraSmart Aluminium Decking System. It is fixed to aluminium substructures on balconies and terraces, ensuring high strength while remaining corrosion-resistant.
- Indirect fixing method allows for thermal expansion and contraction
- Qualicoat Seaside, Class 2 powder coating provides outstanding weather and wear resistance
- Highly durable and scratch-resistant, even in areas of high foot traffic
- Rigorously slip-tested and certified as low-risk of slip
- Boards are available in any RAL colour with 6 standard finishes. See finishes
Aluminium Decking Finishes
RAL 7037 - Dusty grey
RAL 7039 - Quartz Grey
RAL 7040 - Window Grey
RAL 8014 - Sepia Brown
RAL 8019 - Grey Brown
Details
| Material | Aluminium 6063-T6 |
|---|---|
| Dimensions | See "Part information" |
| Height range | See "Part information" |
| Weight | See "Part information" |
| Coating | Qualicoat Class 2 textured powder coating |
Performance
| Reaction to fire (BS EN 13501-1) | A2-s1,d0 |
|---|---|
| Durability | Footfall (TM 391): Very slight wear after 100,000 Footfalls. See report for additional details.
Furniture Leg (EN ISO 16581): No damage to surface. See report for additional details. |
| Slip resistance (BS EN 7976) | Classification: Low Slip Potential Slider 55 (Dry): >96 PTV Slider 55 (Wet): >37 PTV Slider 96 (Dry): >63 PTV Slider 96 (Wet): >41 PTV |
| Coefficient of linear thermal expansion | 0.023mm/m/°C |
| Performance - Allowable load | Uniformly distributed >4.0kN/m2, concentrated 2kN |
| Maximum Span | See "Part information" |
| Biological and chemical | Resistant to moulds algae, alkali, bitumen, UV |
| Warranty | 30 years* |
| Design Life | 60 years |
*when used as part of a complete RYNO IGNO system
Part information
| Code | Dimensions | Length | Weight | Maximum Span |
|---|---|---|---|---|
| ADB60 | Dimensions: 200x25mm | Length: Available in stock lengths or cut to length | Weight: 1.958kg/m | Maximum Span: 600mm |
| ADB80 | Dimensions: 200x25mm | Length: Available cut to length | Weight: 2.412kg/m | Maximum Span: 800mm |
Download
Datasheet
pdf 0.39 MB
ADB Aluminium Decking Board
Accessories
AC
Alu Clip
DS
Aluminium Joist
DSB
Decking Screw
CC
Clip Fix Channel
FA
Furniture Anchor
TP
Termination Profile – Aluminium Decking
