Aluminium Paving Support Rail
BB
Baseboard
£0.00
Patent Application Number: GB2407530.1

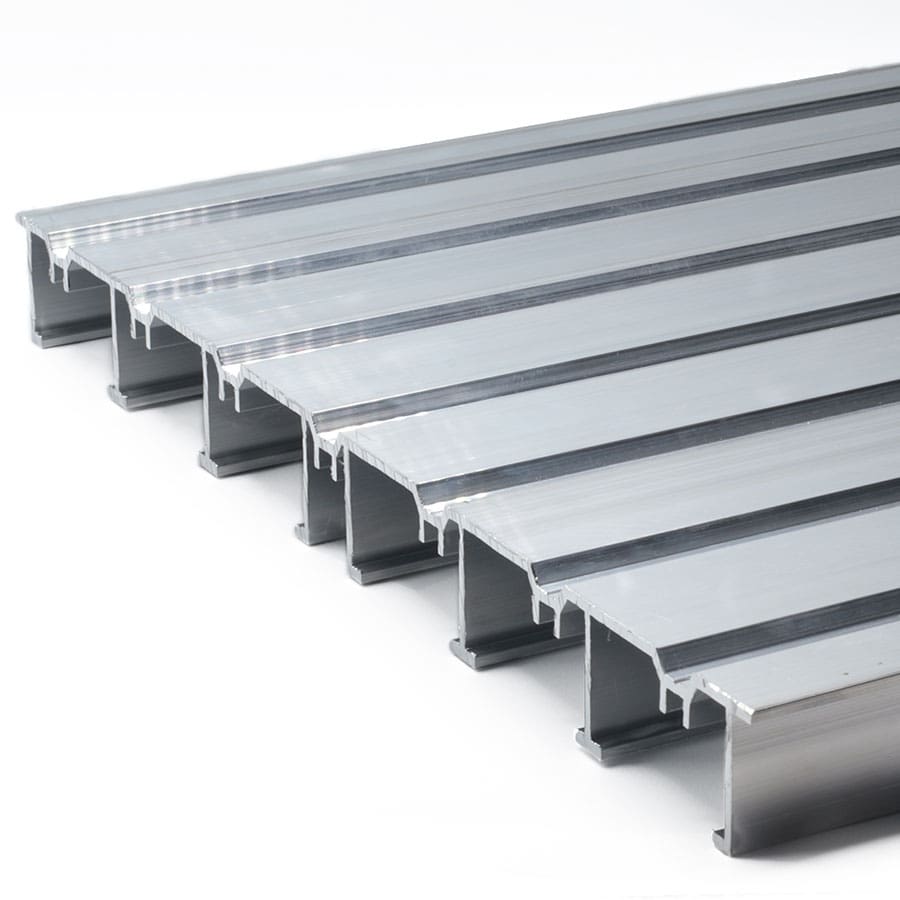

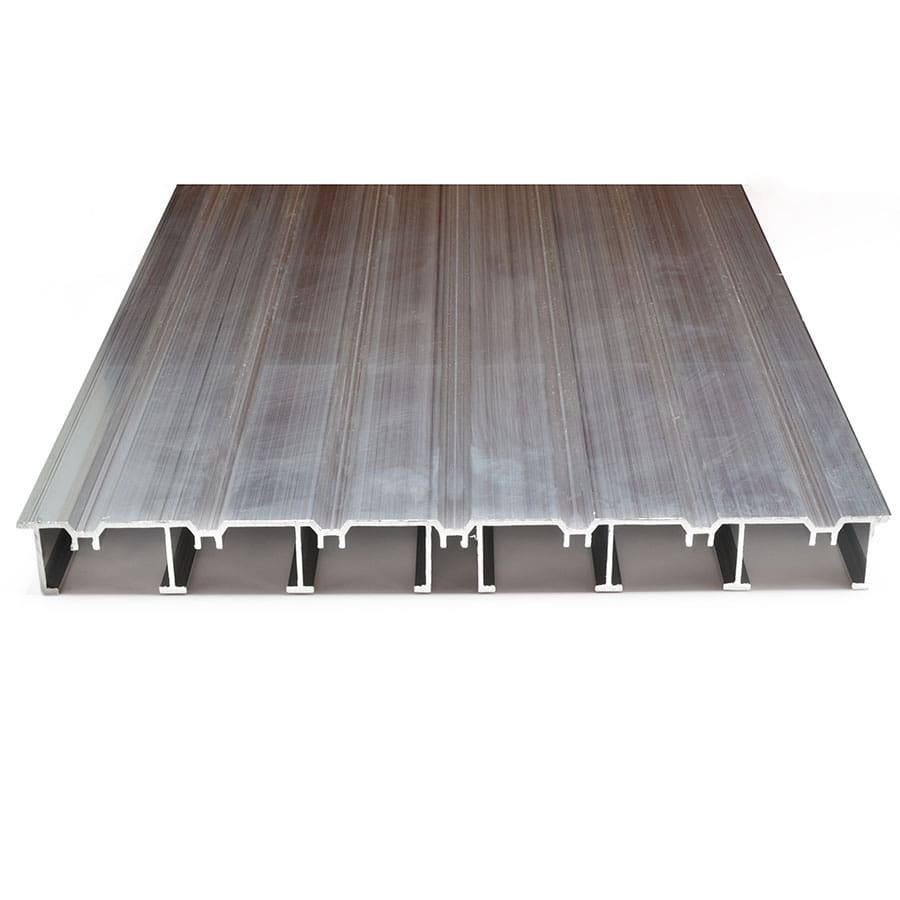

The Baseboard sits on joists to create a solid raised surface. This can be used as a surface to fix planters and furniture to, or additional support for paving, small cuts or other floor surfaces. The sub floor allows for the paving or decking to interface seamlessly with the planters or other flooring surfaces while providing complete support to small cuts and details.
- Corrosion resistant aluminium
- 23mm and 25mm thicknesses available
- Rapid installation
- Provides complete and versatile support
DS
Aluminium Joist
BBF
Baseboard Fixing
DSB
Decking Screw
PHS
Pan-Head Screw
RBG
Resin Bound Gravel kit
CBP
Contour Bespoke Planter Edge
LBP
Ledge Bespoke Planter Edge
ABP
Ascent Bespoke Planter Edge
SM
Stabilisation Mesh
BP
Boundary Profile
Details
| Material | Aluminium 6063-T6 |
|---|---|
| Dimensions | See "Part information" below |
Performance
| Reaction to fire | Inherently A1 (Decision 94-611/EC) |
|---|---|
| Maximum span | See "Part information" below |
| Biological / chemical | Resistant to moulds, algae, alkali, bitumen, UV |
| Warranty | 30 years* |
*when used as part of a complete RYNO system
Part information
| Code | Dimensions | Maximum span |
|---|---|---|
| BB23 | Dimensions: 23x260x3600mm | Maximum span: 600mm |
| BB25 | Dimensions: 25x260x3600mm | Maximum span: 700mm |
Download
Datasheet
pdf 0.46 MB
BB - Baseboard
