RAL 7016
Anthracite Grey
DFB
Aluminium Decking Board – Direct Fix
£0.00

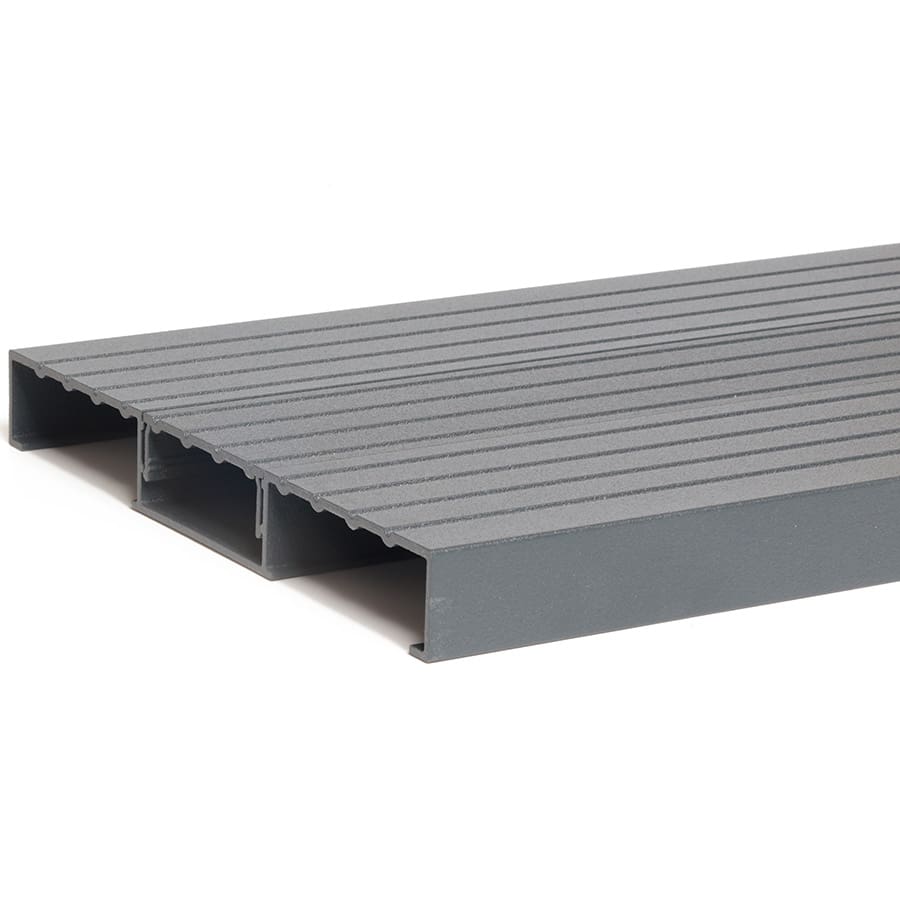

The DFB Aluminium Decking Board – Direct Fix is a fully non-combustible aluminium decking board designed to be fixed directly to balcony steels via its wide clip-in channel. Available in 2 widths, various depths, and a range of spans up to 1.5 metres, the DFB decking board is a versatile choice for any new-build or remediation balcony project.
- Two part design for fast installation in balcony steels
- Qualicoat Seaside, Class 2 powder coating provides outstanding weather and wear resistance
- Highly durable and scratch-resistant, even in areas of high foot traffic
- Rigorously slip-tested and certified as low-risk of slip
- Boards are available in any RAL colour with 6 standard finishes. See finishes.
Finishes
RAL 7037
Dust Grey
RAL 7039
Quarts Grey
RAL 7040
Window Grey
RAL 8014
Sepia Grey
RAL 8019
Grey Brown
Details
| Material | Aluminium 6063-T6 |
|---|---|
| Dimensions | See "Part information" below |
| Height Range | See "Part information" below |
| Weight | See "Part information" below |
| Coating | Qualicoat Class 2 textured powder coating |
Performance
| Reaction to fire (BS EN 13501-1) | A2-s1,d0 |
|---|---|
| Durability | Footfall (TM 391): Very slight wear after 100,000 Footfalls. See report for additional details.
Furniture Leg (EN ISO 16581): No damage to surface. See report for additional details. |
| Slip resistance (BS EN 7976) | Classification: Low Slip Potential Slider 55 (Dry): >96 PTV Slider 55 (Wet): >37 PTV Slider 96 (Dry): >63 PTV Slider 96 (Wet): >41 PTV |
| Coefficient of linear thermal expansion | 0.023mm/m/°C |
| Performance - Allowable load | Uniformly distributed >4.0kN/m2, concentrated 2kN |
| Maximum Span | See "Part information" |
| Biological and chemical | Resistant to moulds algae, alkali, bitumen, UV |
| Warranty | 30 years* |
| Design Life | 60 years |
*when used as part of a complete RYNO IGNO system
Part information
| Code | Dimensions | Length | Weight | Maximum span |
|---|---|---|---|---|
| DFB60-LH | Dimensions: 200x20mm | Length: Available cut to length | Weight: 10.3kg/m2 | Maximum span: 600mm |
| DFB80-LH | Dimensions: 200x20mm | Length: Available cut to length | Weight: 10.6kg/m2 | Maximum span: 800mm |
| DFB60 | Dimensions: 200x25mm | Length: Available in stock lengths or cut to length | Weight: 10.2kg/m2 | Maximum span: 600mm |
| DFB60-150 | Dimensions: 150x25mm | Length: Available cut to length | Weight: 8.5kg/m2 | Maximum span: 600mm |
| DFB100 | Dimensions: 200x30mm | Length: Available cut to length | Weight: 12.6kg/m2 | Maximum span: 1000mm |
| DFB120 | Dimensions: 200x30mm | Length: Available cut to length | Weight: 14.0kg/m2 | Maximum span: 1200mm |
| DFB150 | Dimensions: 200x40mm | Length: Available cut to length | Weight: 14.3kg/m2 | Maximum span: 1500mm |
Download
Datasheet
pdf 0.48 MB
DFB - Aluminium Decking Board
Compatible components
ADC
Joist Support Cleat
DS
Aluminium Joist
JH
Joist Hanger
HHS
Hex-head Screw
FA
Furniture Anchor
T
Aluminium Support Rail
