ESC

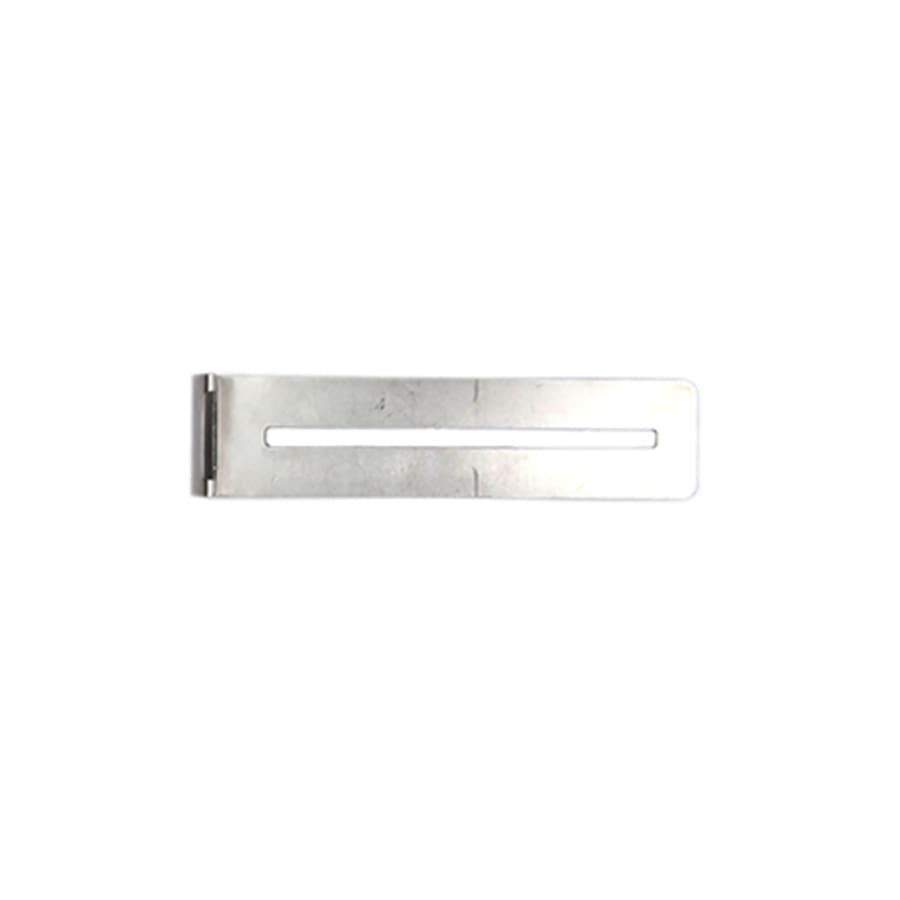

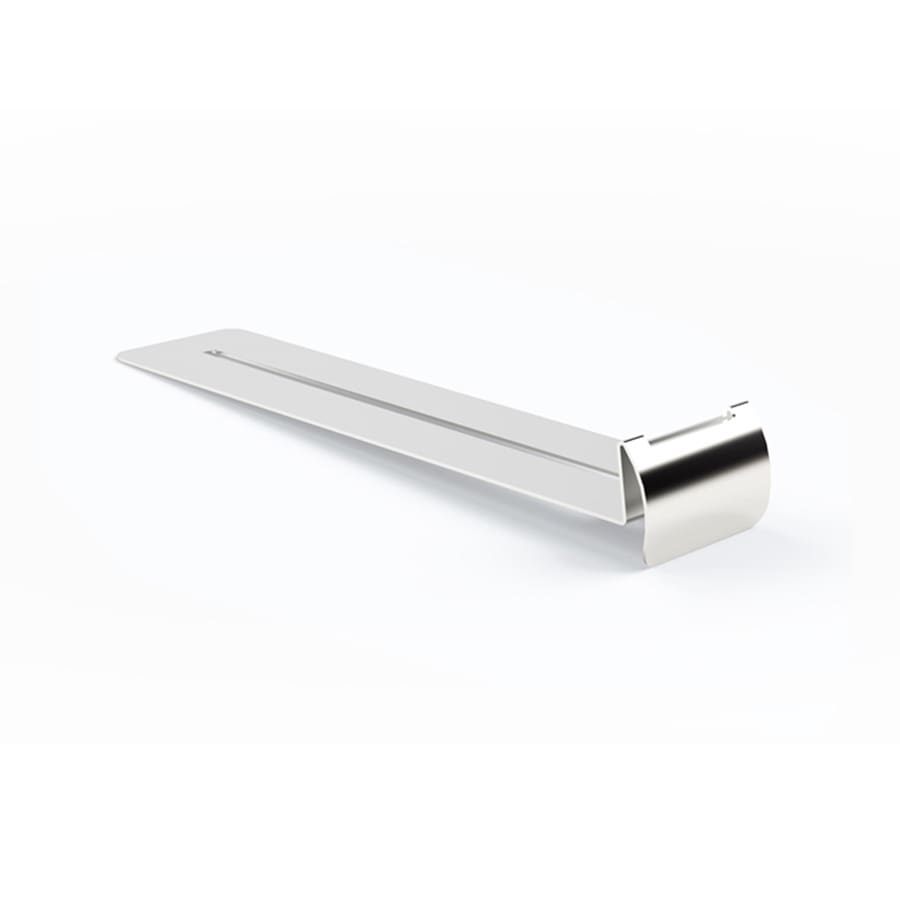

Edge Spring Clip
£0.00
The Edge Spring Clip is a stainless steel, spring-loaded edge spacer clip designed to maintain a consistent drainage gap around the edges of paved areas while keeping the paving locked in place to prevent paver creep and the widening of paver gaps. It features a centre slot for placement over pedestal spacer tabs and has a 12mm tensioned edge spacer to ensure that paving on terraces and balconies complies with BS 8579 recommendations: As-built gaps of 10 mm to 12 mm should be maintained around the perimeter of the pedestrian surface to facilitate good drainage.
- Two sizes available for 20mm and 50mm paving
- Meets the BS 8579 recommendation
- Facilitates good drainage
- Prevents paver creep and the widening of paver gaps
Compatible components
RP-FR
Non-Combustible Adjustable Paving Support Pedestal
RPA-FR
RPA-FR Non-Combustible Self-Levelling Paving Support Pedestal
RP-FR-WU
Non-Combustible Wind Uplift Paving Support Pedestal
RPA
Self-Levelling Adjustable Paving Support Pedestal
RPF
Fixed Head Adjustable Paving Support Pedestal
HSP
Non-Combustible Head Shock Pad
HRSP
Self-Adhesive Head Rubber Shock Pad
Details
| Material | Stainless Steel A2 (semi hard) |
|---|---|
| Dimensions | 167 x 40 x 17mm |
Performance
| Reaction to fire (BS EN 13501-1) | Inherently A1 (Decision 94-611/EC) |
|---|---|
| Biological and chemical | Resistant to moulds, algae, alkali, bitumen, UV |
| Warranty | 30 years* |
| Design life | 60 years |
*when used as part of a complete RYNO system
Download
Datasheet
pdf 0.23 MB
Edge Spring Clip
