Datasheet - FRS Fall Restraint Sheet
pdf 0.16 MB
FRS
Fall Restraint Sheet
£0.00

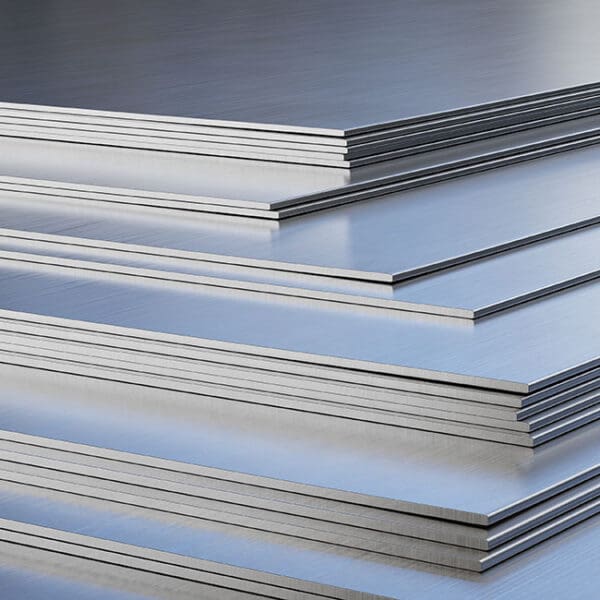

The Aluminium Fall Restraint Sheet is a 2mm thick sheet of high-grade aluminium alloy, designed to provide a fall restraint layer in several BalcaSmart systems. Available in 600x1200mm sheets, it is fixed to the metal frame of a projecting balcony, beneath paving or decking support joists, to prevent material from falling below in case of damage caused by impact or overload.
- High-grade 1050A H14 aluminium alloy
- Tested as a fall restraint for certain BalcaSmart systems
- Available in 600x1200mm sheets
Details
| Material | Aluminium 1050A H14 |
|---|---|
| Dimensions | 600x1200x2mm |
| Weight | 3.94kg/each |
| Mechanical Properties | Tensile Strength: 105-145 MPa (BS EN 485-1, 2 & 4) |
Performance
| Allowable Load | See Impact and Concentrated Load |
|---|---|
| Impact (Live) Load | Pass* |
| Concentrated (Dead) Load | Pass* |
*Only when used as part of BalcaSmart System build up – test report available on request
