Datasheet - Liora Textured Concrete Paving
pdf 1.11 MB
Download the overview for the system for more information
CP-LT
Liora Textured Concrete Paver
£0.00

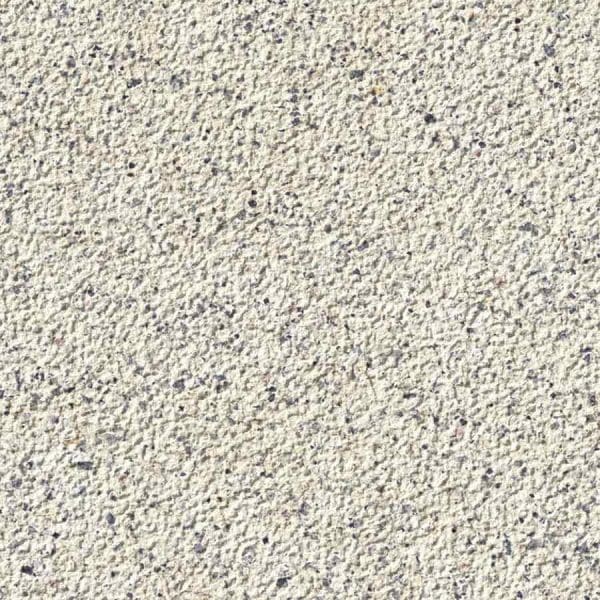

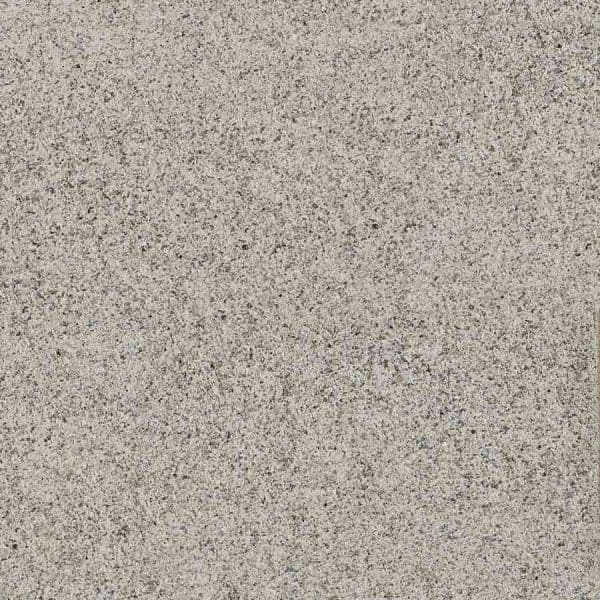

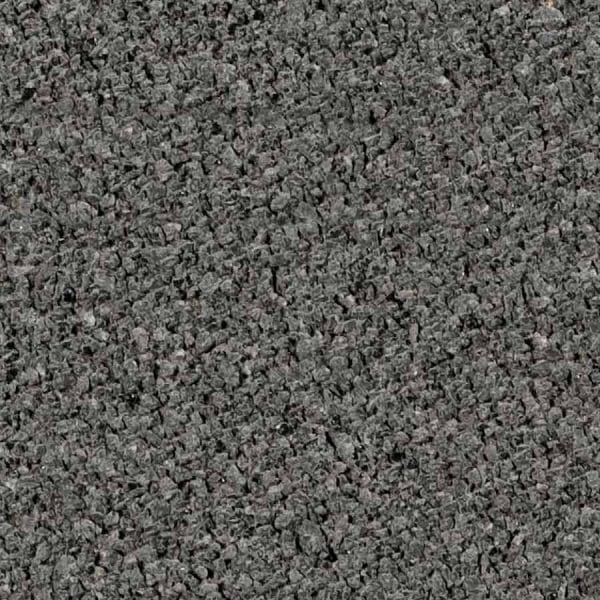

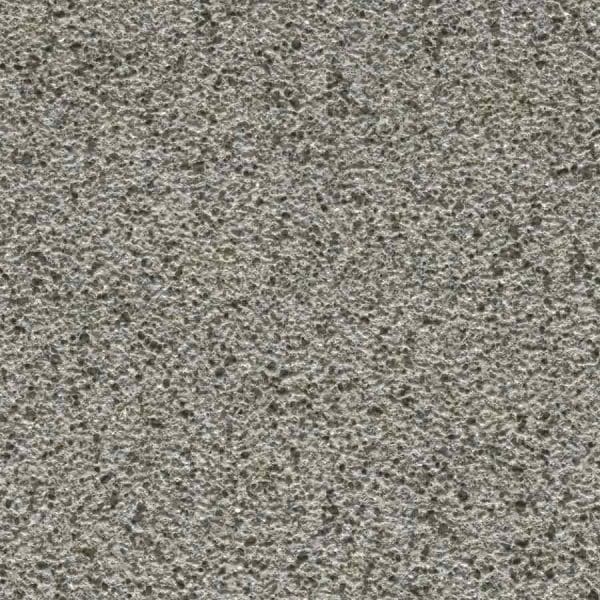

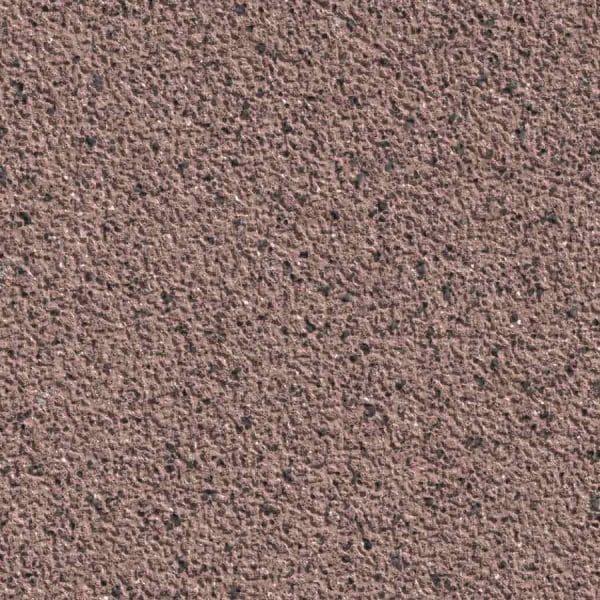

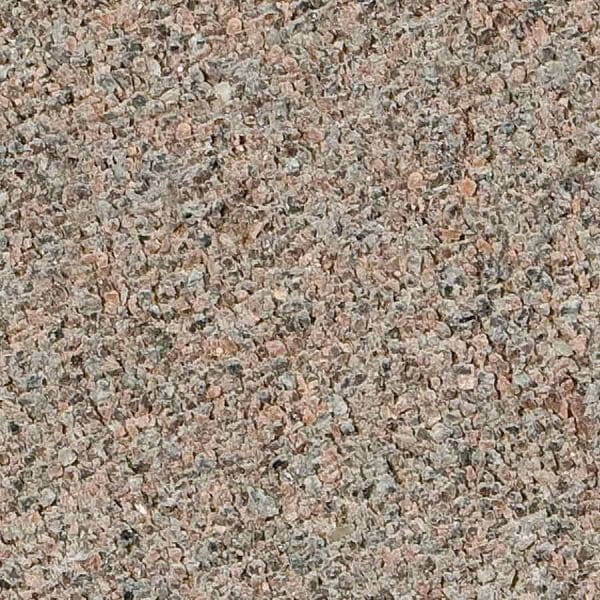

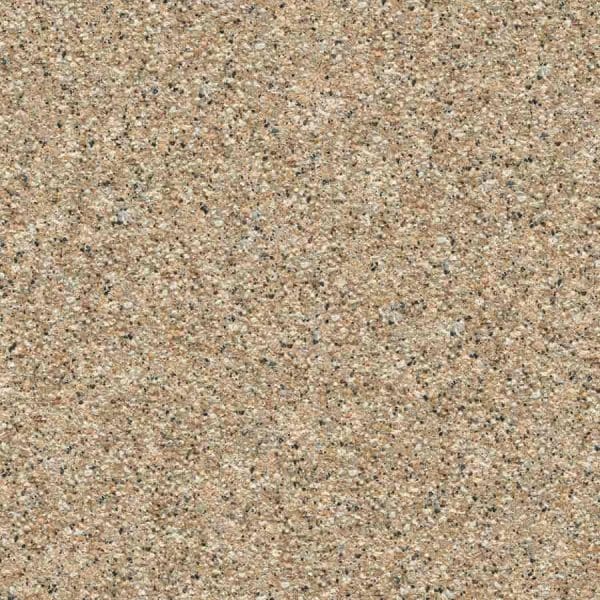

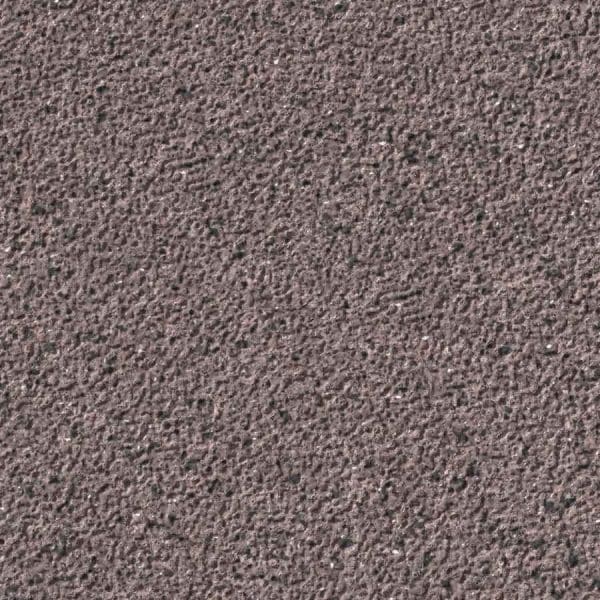

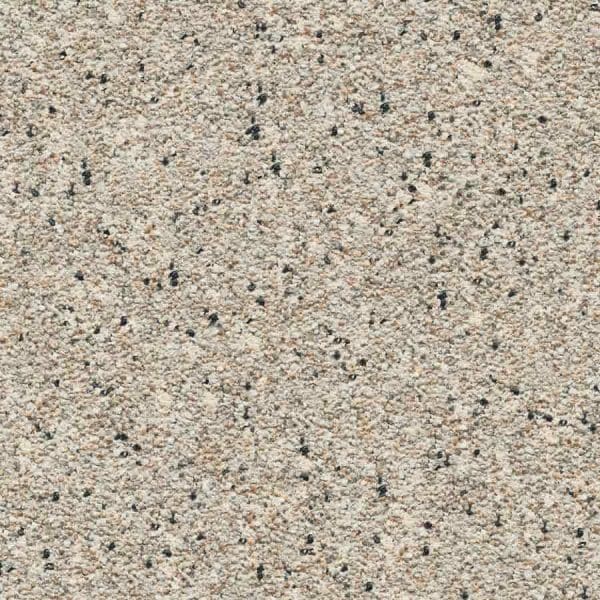

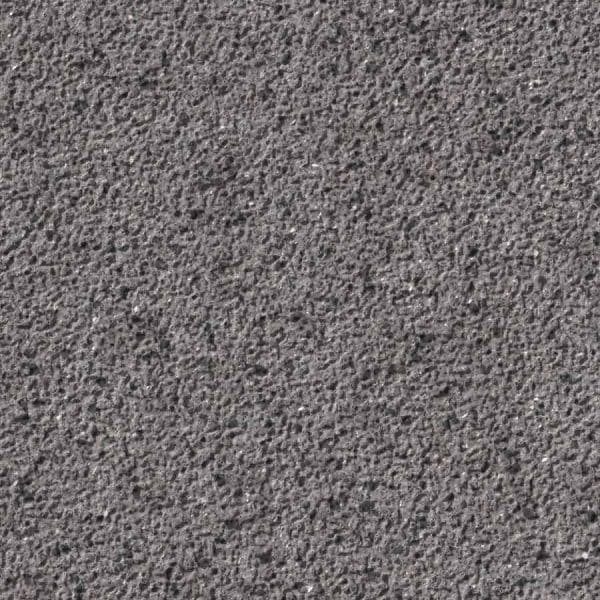

The Liora Textured Concrete Paver is a premium concrete paving option that elegantly catches the light with its various finishes, providing a textured and contemporary feel to terraces, balconies, and access walkways. Akin to the feel of a natural igneous rock, this range of concrete pavers offers attractive and unique finishing options to enhance your outdoor space.
- Textured surface for a contemporary feel
- Similar to the feel of natural igneous rock
- Elegant and stylish appearance
- Complies with BS EN 1339:2003
- Provides a unique and attractive look to your outdoor space
Description

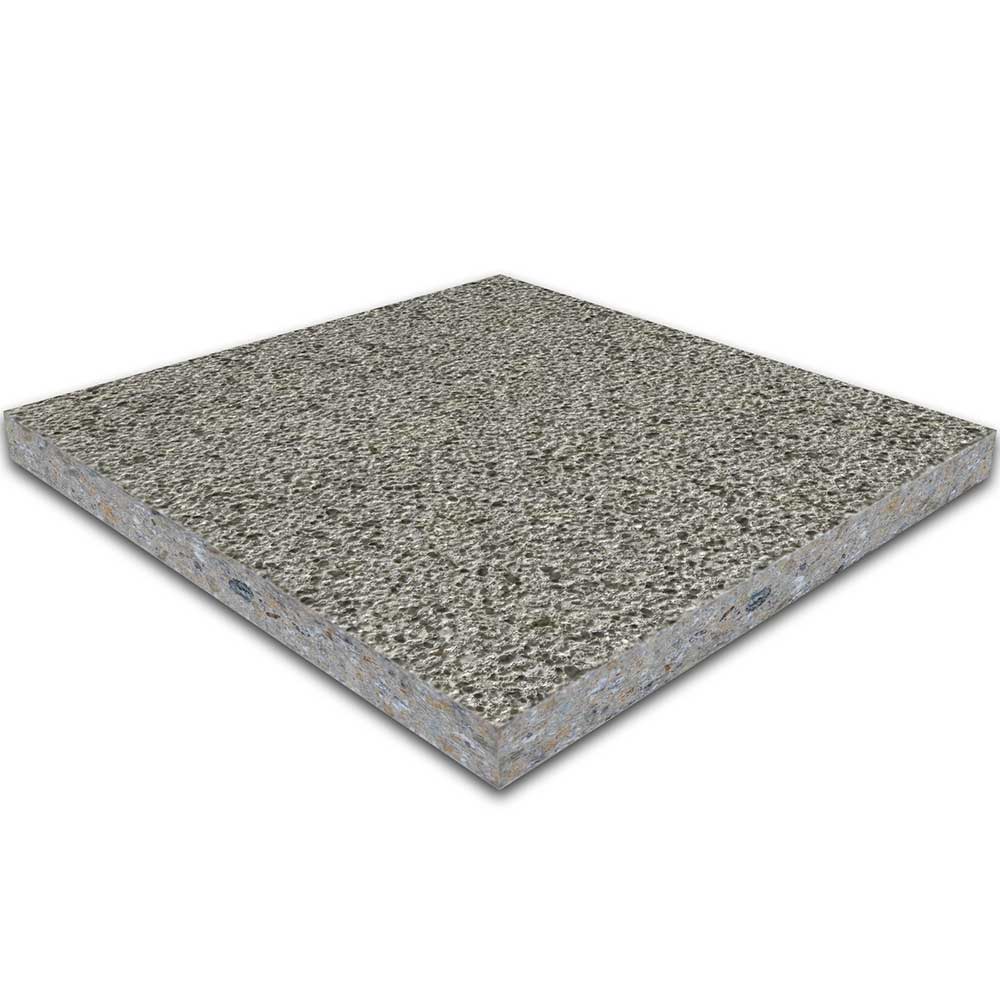

| Appearance | Two-part unit with textured surface and integral spacers |
|---|---|
| Manufacturing Process | Hydraulically pressed concrete |
| Base Raw Material | Concrete |
| Governing Manufacturing Standards | All data where relevant to be established in accordance with BS EN 1339 : 2003 |
Physical Properties
| Tolerances on Work Dimensions (mm) | Length ±2mm, width ±2mm, thickness ±3mm |
|---|---|
| Abrasion Resistance (mm) | = 23mm (Wide Wheel Abrasion Test) |
| Durability (Freeze-thaw) | = 1.0 kg/m² as a mean with no individual value > 1.5 kg/m² |
| Material Density | 2300 kg/m³ (typically) |
| Slip/Skid Resistance (polished) | Mean polished skid resistance value (PSRV) : > 45 |
| Slip/Skid Resistance (unpolished) | Mean unpolished skid resistance value (USRV) : > 45. |
| Thermal Conductivity (K value) | Design data as defined to BS EN 13369 : 2013 |
Technical Specification
| Emission of Asbestos | No content |
|---|---|
| Reaction to fire | A1 and Afl |
| Breeam | These units can achieve an ''A'' rated system when used in conjunction with the correct sub-base components |
| Carbon Footprint | 32kg CO2 m² |
Dimensions
| Nominal Dimensions (mm) | Work Dimensions (mm) | Approx. Weight (KG) | Pack Qty | Pack Weight (KG) |
|---|---|---|---|---|
| 200 x 100 x 80 | Work Dimensions (mm): 199 x 99 x 80 | Approx. Weight (KG): 4 | Pack Qty: 378 | Pack Weight (KG): 1360 |
| 200 x 200 x 80 | Work Dimensions (mm): 199 x 199 x 80 | Approx. Weight (KG): 7 | Pack Qty: 180 | Pack Weight (KG): 1296 |
| 300 x 100 x 80 | Work Dimensions (mm): 299 x 99 x 80 | Approx. Weight (KG): 6 | Pack Qty: 252 | Pack Weight (KG): 1492 |
| 300 x 200 x 80 | Work Dimensions (mm): 299 x 199 x 80 | Approx. Weight (KG): 11 | Pack Qty: 120 | Pack Weight (KG): 1296 |
| 300 x 300 x 80 | Work Dimensions (mm): 299 x 299 x 80 | Approx. Weight (KG): 14 | Pack Qty: 84 | Pack Weight (KG): 1210 |
| 400 x 200 x 80 | Work Dimensions (mm): 399 x 199 x 80 | Approx. Weight (KG): 15 | Pack Qty: 112 | Pack Weight (KG): 1253 |
| 400 x 300 x 80 | Work Dimensions (mm): 399 x 299 x 80 | Approx. Weight (KG): 23 | Pack Qty: 56 | Pack Weight (KG): 1240 |
| 400 x 400 x 80 | Work Dimensions (mm): 399 x 399 x 80 | Approx. Weight (KG): 30 | Pack Qty: 42 | Pack Weight (KG): 1256 |
| 600 x 200 x 80 | Work Dimensions (mm): 599 x 199 x 80 | Approx. Weight (KG): 23 | Pack Qty: 56 | Pack Weight (KG): 1253 |
| 600 x 300 x 80 | Work Dimensions (mm): 599 x 299 x 80 | Approx. Weight (KG): 32 | Pack Qty: 42 | Pack Weight (KG): 1360 |
| 600 x 600 x 80 | Work Dimensions (mm): 599 x 599 x 80 | Approx. Weight (KG): 67 | Pack Qty: 16 | Pack Weight (KG): 1080 |
