Datasheet - Piata Smooth Concrete Paving
pdf 1.60 MB
An informational and technical product datasheet.
CP-PSM

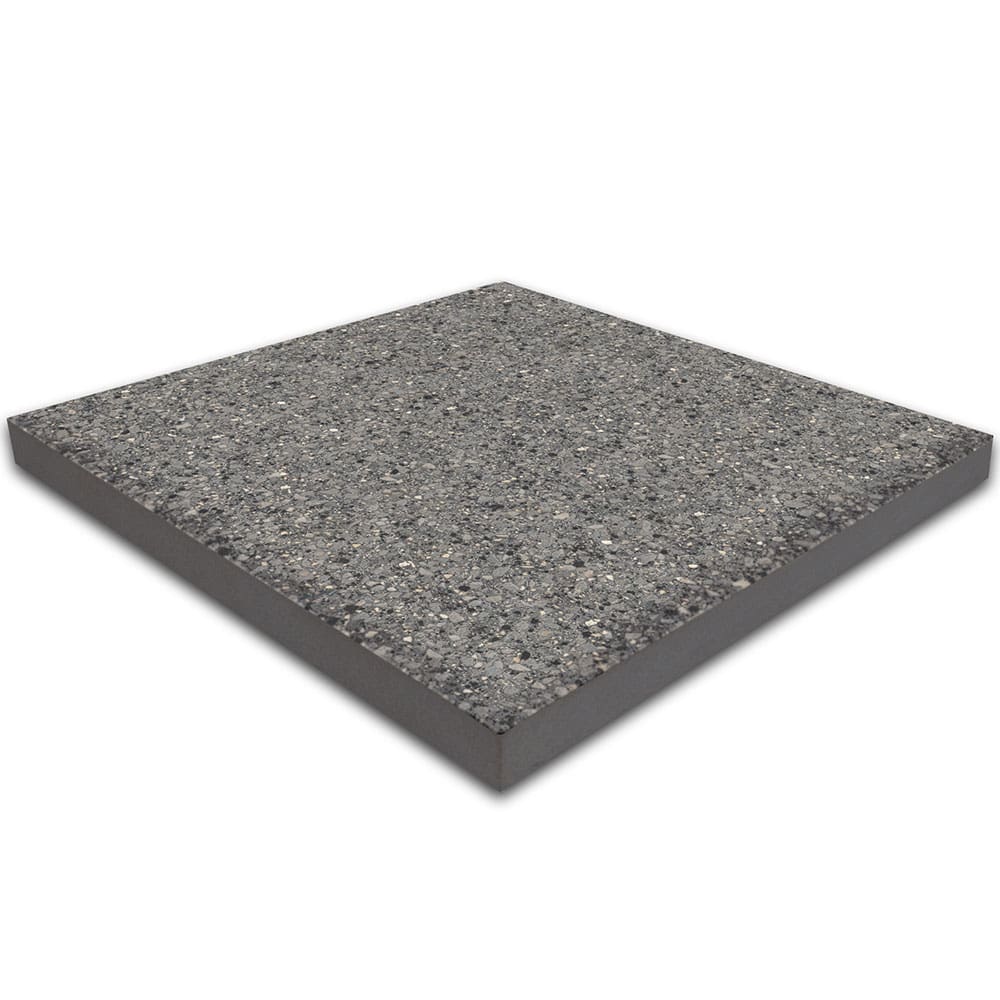

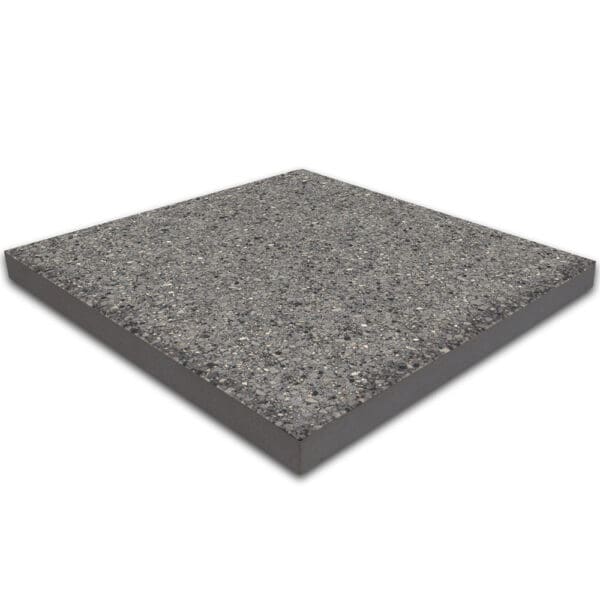

Piata Smooth Concrete Paver
£0.00
The Piata Smooth Concrete Paver is a premium concrete paving option that resembles granite, providing a luxurious feel for terraces, balconies, and access walkways. These concrete pavers create a refined and curated atmosphere, akin to walking on a meticulously finished surface. The Piata range features a natural crystalline aggregate surface and offers a high-quality granite alternative for your design.
- Complies with BS EN 1339:2003
- Granite-like appearance for a premium look
- Refined and curated atmosphere
- Natural crystalline aggregate surface
- Durable and long-lasting
- Provides a luxurious feel for your outdoor space
Description
| Appearance | Solid unit with smooth surface |
|---|---|
| Manufacturing Process | Hydraulically pressed concrete |
| Base Raw Material | Concrete |
| Governing Manufacturing Standards | All data where relevant to be established in accordance with BS EN 1339 : 2003 |
Physical Properties
| Tolerances on Work Dimensions (mm) | Length ±2mm, width ±2mm, thickness ±3mm |
|---|---|
| Abrasion Resistance (mm) | = 23mm (Wide Wheel Abrasion Test) |
| Durability (Freeze-thaw) | = 1.0 kg/m² as a mean with no individual value > 1.5 kg/m² |
| Material Density | 2300 kg/m³ (typically) |
| Slip/Skid Resistance (polished) | Mean polished skid resistance value (PSRV) : > 45 |
| Slip/Skid Resistance (unpolished) | Mean unpolished skid resistance value (USRV) : > 45. |
| Thermal Conductivity (K value) | Design data as defined to BS EN 13369 : 2013 |
Technical Specification
| Emission of Asbestos | No content |
|---|---|
| Reaction to fire | A1 and Afl |
| Breeam | These units can achieve an ''A'' rated system when used in conjunction with the correct sub-base components |
| Carbon Footprint | 24kg CO2 m² |
Dimensions
| Nominal Dimensions (mm) | Work Dimensions (mm) | Approx. Weight (KG) | Pack Qty | Pack Weight (KG) |
|---|---|---|---|---|
| 400 x 400 x 50 | Work Dimensions (mm): 398 x 398 x 50 | Approx. Weight (KG): 18 | Pack Qty: 40 | Pack Weight (KG): 736 |
| 450 x 450 x 50 | Work Dimensions (mm): 448 x 448 x 50 | Approx. Weight (KG): 24 | Pack Qty: 40 | Pack Weight (KG): 960 |
| 600 x 600 x 50 | Work Dimensions (mm): 598 x 598 x 50 | Approx. Weight (KG): 40 | Pack Qty: 20 | Pack Weight (KG): 800 |
| 900 x 300 x 50 | Work Dimensions (mm): 989 x 298 x 50 | Approx. Weight (KG): 32 | Pack Qty: 20 | Pack Weight (KG): 640 |
