Mist
PT-T

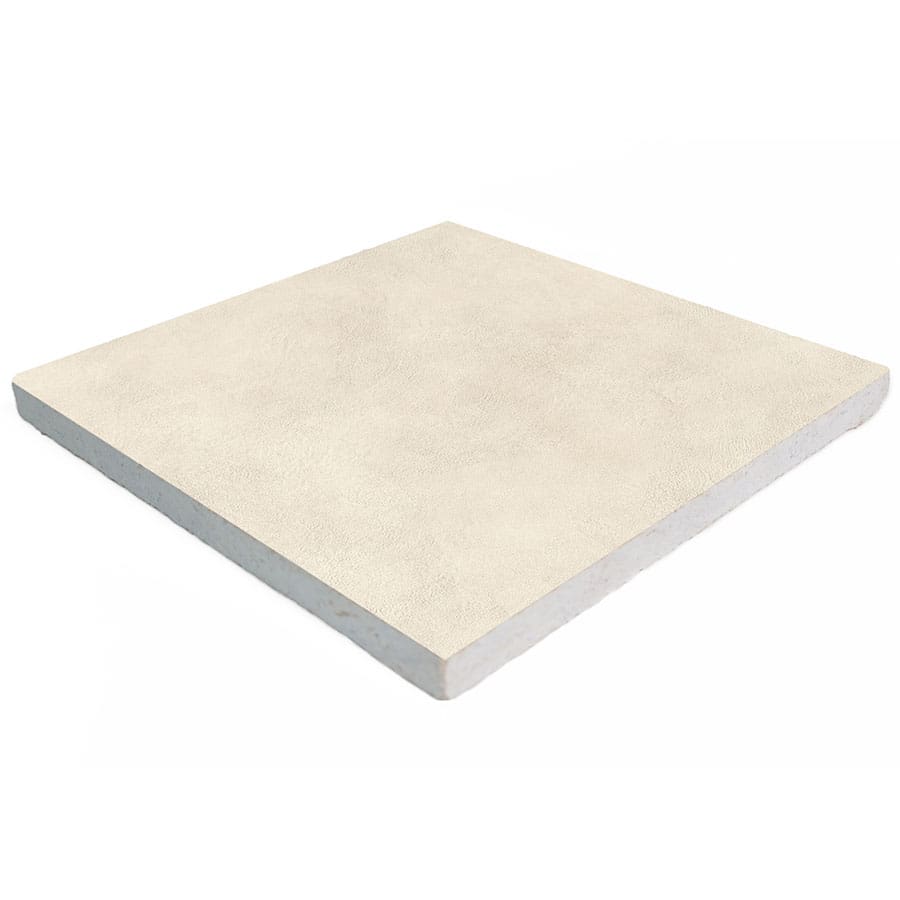

Tonaco Porcelain Paver
£0.00
The Tonaco Porcelain Paver is a 20mm porcelain tile featuring aesthetic grey tones with a plaster effect finish. This porcelain slab comes in three designs, making it the perfect choice for any outdoor space. This high-end ceramic paver is durable, low maintenance, and non-porous, making it perfect for functional yet beautiful environments.
- Non-porous, guaranteed frost-resistant
- Protected from staining and fading
- Class A1 fire-rated
- Rigorously slip-tested and certified as low-risk of slip
- CE marked

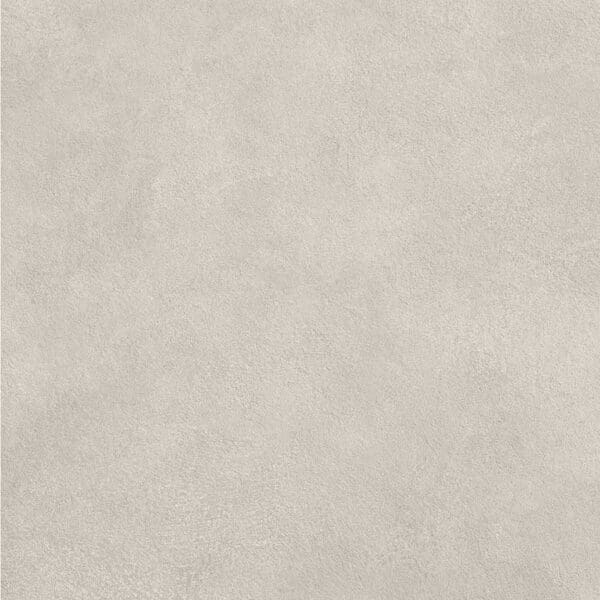

Finishes

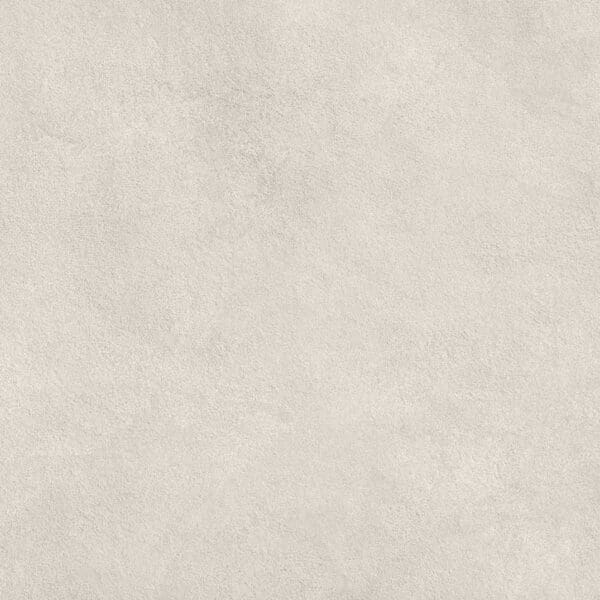

Steam

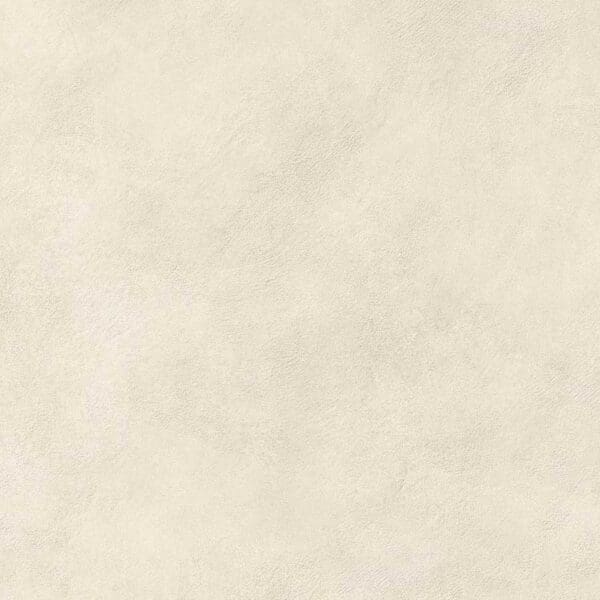

Foam
Details
| Material | Ceramic |
|---|---|
| Dimensions | 600x600x20mm 600x1200x20mm 1200x1200x20mm Bespoke fabrication available |
| Working dimensions | 595x595x20mm 595x1195x20mm 1195x1195x20mm |
| Weight | 44.8kg/m2 |
| Light Reflectance Value (LRV) | See “Part information” below |
| Number of face patterns | See “Part information” below |
Performance
| Reaction to fire (BS EN 13501-1) | Inherently A1 (Decision 94-611/EC) |
|---|---|
| Slip resistance (BS EN 16165) | Classification: Low Slip Potential Slider 55 (Dry): >36 PTV Slider 55 (Wet): >36 PTV Slider 96 (Dry): >36 PTV Slider 96 (Wet): >36 PTV |
| Allowable load | See "Compatible system" data below |
| Breaking strength (ISO 10545-4) | ≥10kN |
| Repeated shock test (installation on pedestals) | QB UPEC F+ compliant |
Part information
| Size | Colour | LRV | Number of face patterns (average) | Pack quantity | Pallet quantity |
|---|---|---|---|---|---|
| 600x600mm | Colour: Mist | LRV: 32 | Number of face patterns (average): 32 | Pack quantity: 2 | Pallet quantity: 60 |
| 600x600mm | Colour: Steam | LRV: 22 | Number of face patterns (average): 32 | Pack quantity: 2 | Pallet quantity: 60 |
| 600x600mm | Colour: Foam | LRV: 11 | Number of face patterns (average): 32 | Pack quantity: 2 | Pallet quantity: 60 |
| 600x1200mm | Colour: Mist | LRV: 32 | Number of face patterns (average): 22 | Pack quantity: 1 | Pallet quantity: 20 |
| 600x1200mm | Colour: Steam | LRV: 22 | Number of face patterns (average): 22 | Pack quantity: 1 | Pallet quantity: 20 |
| 600x1200mm | Colour: Foam | LRV: 11 | Number of face patterns (average): 22 | Pack quantity: 1 | Pallet quantity: 20 |
| 1200x1200mm | Colour: Mist | LRV: 32 | Number of face patterns (average): 11 | Pack quantity: 1 | Pallet quantity: 20 |
| 1200x1200mm | Colour: Steam | LRV: 22 | Number of face patterns (average): 11 | Pack quantity: 1 | Pallet quantity: 20 |
| 1200x1200mm | Colour: Foam | LRV: 11 | Number of face patterns (average): 11 | Pack quantity: 1 | Pallet quantity: 20 |
Download
Datasheet
pdf 0.72 MB
PT-T - Tonaco Porcelain Paver
Compatible components
RP-FR
Non-Combustible Adjustable Paving Support Pedestal
RPA-FR
RPA-FR Non-Combustible Self-Levelling Paving Support Pedestal
RPS-FR
Non-Combustible Stackable Paving Support Pad
RP-FR-WU
Non-Combustible Wind Uplift Paving Support Pedestal
RPS
Stackable Paving Support Pad
RPA
Self-Levelling Adjustable Paving Support Pedestal
RPF
Fixed Head Adjustable Paving Support Pedestal
RPF-LH
Low-Height Adjustable Paving Support Pad
RST
Aluminium Paving Support Rail
FA
Furniture Anchor
HRSP
Self-Adhesive Head Rubber Shock Pad
RHF-WU
Rail Wind Uplift Restraint - Hidden Fixing
ESC
Edge Spring Clip
PSR
Rail Paving Spacer
