PT-QU

Quadro Porcelain Paver

£0.00

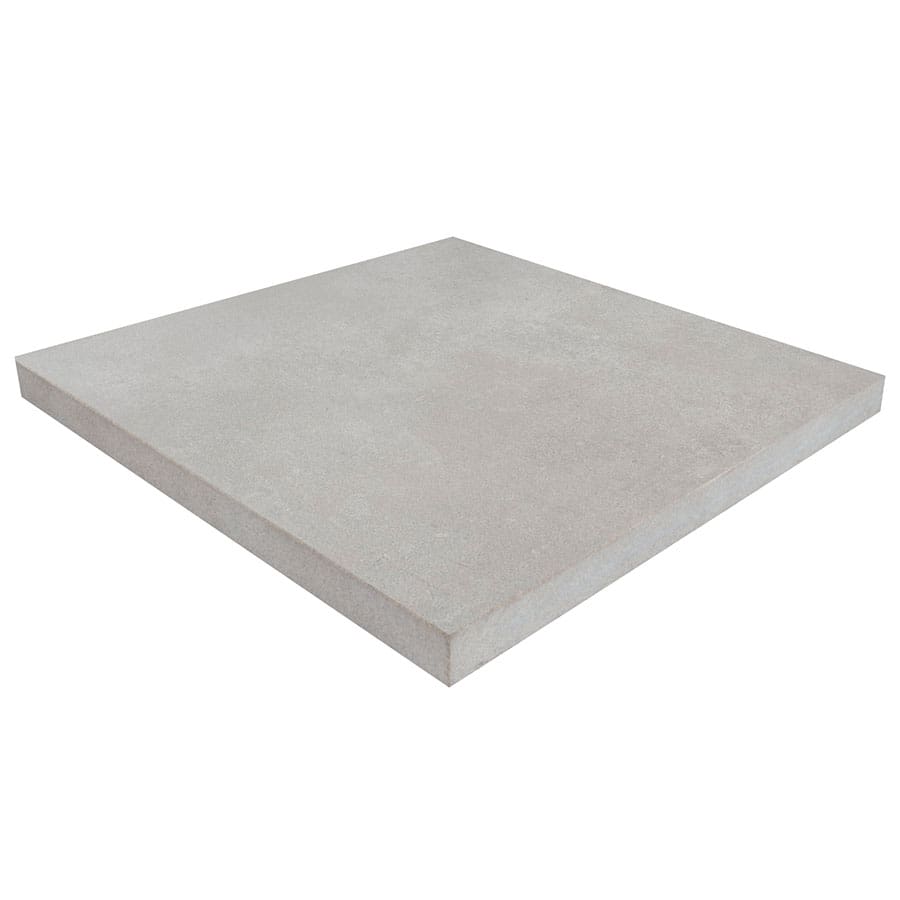

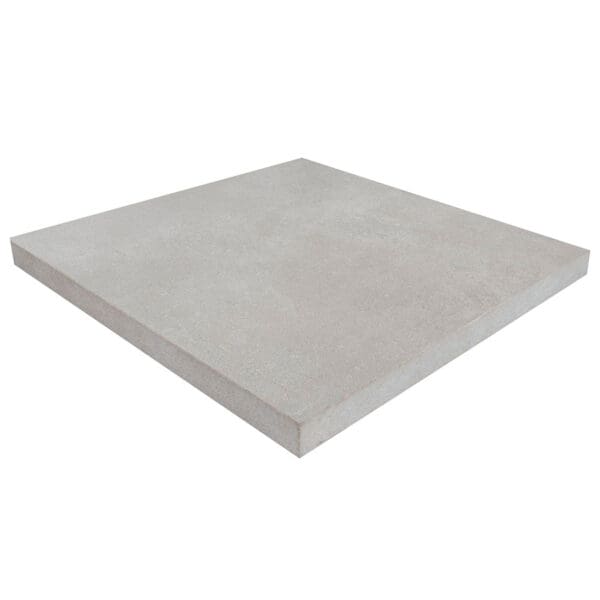

The Quadro Porcelain Paver is a 20mm porcelain tile with a minimalist, contemporary concrete design, featuring subtle screed lines and cementitious textures. This popular porcelain slab comes in three warm tones and is available in two formats, providing various design options to complete a clean, modern, and inviting aesthetic. This high-end ceramic paver is durable, low maintenance, and non-porous, making it perfect for functional yet beautiful environments.

  • Rigorously slip-tested and certified as low-risk of slip
  • Environmentally safe, eco-friendly, and sustainable
  • CE Marked
  • 3 colour options
  • Various size options
Download the datasheet

Finishes

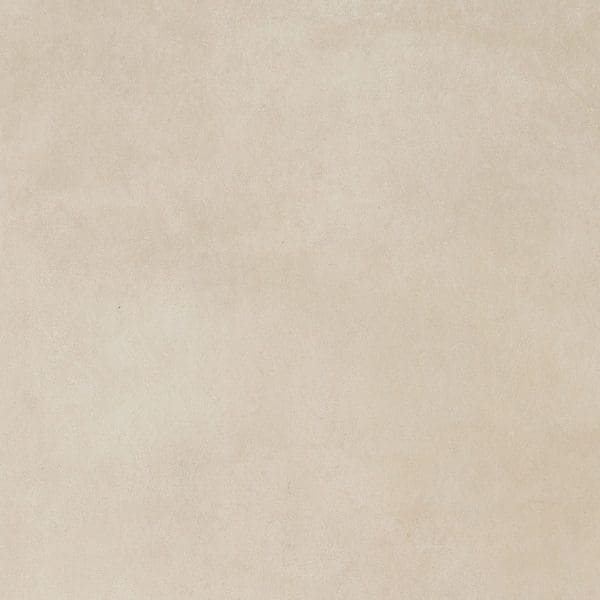

Quadro Crema Beige

Crema Beige

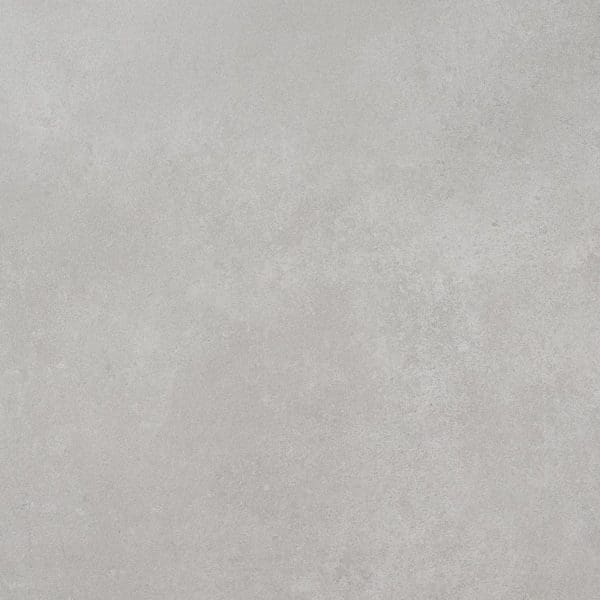

Quadro Argento Grey

Argento Grey

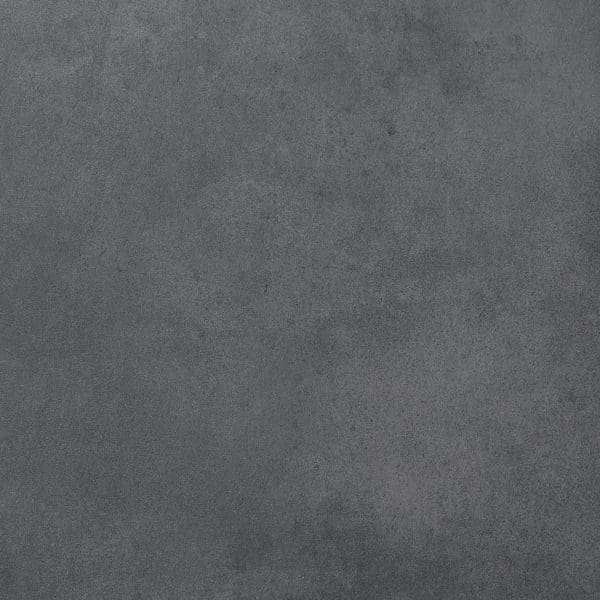

Quadro Nero Anthracite

Nero Anthracite

Details

MaterialsCeramic
Dimensions600x600mm
600x1200mm
Working Dimensions597x597mm
597x1195mm
Weight44.8kg/m2
Light Reflectance Value (LRV)See “Part information” below
Number of face patternsSee “Part information” below

Performance

Reaction to fire (BS EN 13501-1)Inherently A1 (Decision 94-611/EC)
Performance - Reaction to fire (BS EN 13501-5)BROOF(t4)*
Slip resistance (BS EN 7976)Classification: Low Slip Potential

Slider 55 (Dry): >102 PTV
Slider 55 (Wet): >43 PTV
Slider 96 (Dry): >64 PTV
Slider 96 (Wet): >54 PTV
Allowable loadSee "Compatible system" data below
Breaking strength (ISO 10545-4)≥9.5kN
Repeated shock test (installation on pedestals)QB UPEC F+ compliant

*when used as part of a complete RYNO system

Part information

SizeColourLRVPack quantityPallet quantity
600x600mmColour: Crema BeigeLRV: 48Pack quantity: 2Pallet quantity: 64
600x600mmColour: Argento GreyLRV: 33Pack quantity: 2Pallet quantity: 64
600x600mmColour: Nero AnthraciteLRV: 16Pack quantity: 2Pallet quantity: 64
600x1200mmColour: Crema BeigeLRV: 48Pack quantity: 2Pallet quantity: 32
600x1200mmColour: Argento GreyLRV: 33Pack quantity: 2Pallet quantity: 32
600x1200mmColour: Nero AnthraciteLRV: 16Pack quantity: 2Pallet quantity: 32

Download

Datasheet

pdf 0.69 MB

PT-QU - Quadro Porcelain Paver

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

Download

Compatible components

RP-FR Non-combustible Adjustable Paving Support Pedestal

RP-FR

Non-Combustible Adjustable Paving Support Pedestal

RPA-FR Non-Combustible Self levelling Paving Support Pedestal

RPA-FR

RPA-FR Non-Combustible Self-Levelling Paving Support Pedestal

RPS-FR low height stackable pedestal IGNO

RPS-FR

Non-Combustible Stackable Paving Support Pad

RP-FR-WU Non-Combustible Wind Uplift Paving Support

RP-FR-WU

Non-Combustible Wind Uplift Paving Support Pedestal

RPS low-Height Adjustable Paving Support Pad

RPS

Stackable Paving Support Pad

RPA Self-levelling Adjustable Paving Support Pedestal

RPA

Self-Levelling Adjustable Paving Support Pedestal

RPF Fixed Head Adjustable Paving Support Pedestal

RPF

Fixed Head Adjustable Paving Support Pedestal

RPF-LH Low-Height Adjustable Paving Support Pad

RPF-LH

Low-Height Adjustable Paving Support Pad

RST Aluminium Paving Support Rail

RST

Aluminium Paving Support Rail

FA Furniture Anchor

FA

Furniture Anchor

HRSP Self-Adhesive Head Rubber Shock Pad

HRSP

Self-Adhesive Head Rubber Shock Pad

RHF-WU Rail Wind Uplift Restraint Hidden Fixing

RHF-WU

Rail Wind Uplift Restraint - Hidden Fixing

ESC Edge Spring Clip

ESC

Edge Spring Clip

PSR Rail Paving Spacer

PSR

Rail Paving Spacer
