RD-FR
Non-Combustible Adjustable Joist Support Pedestal
£0.00

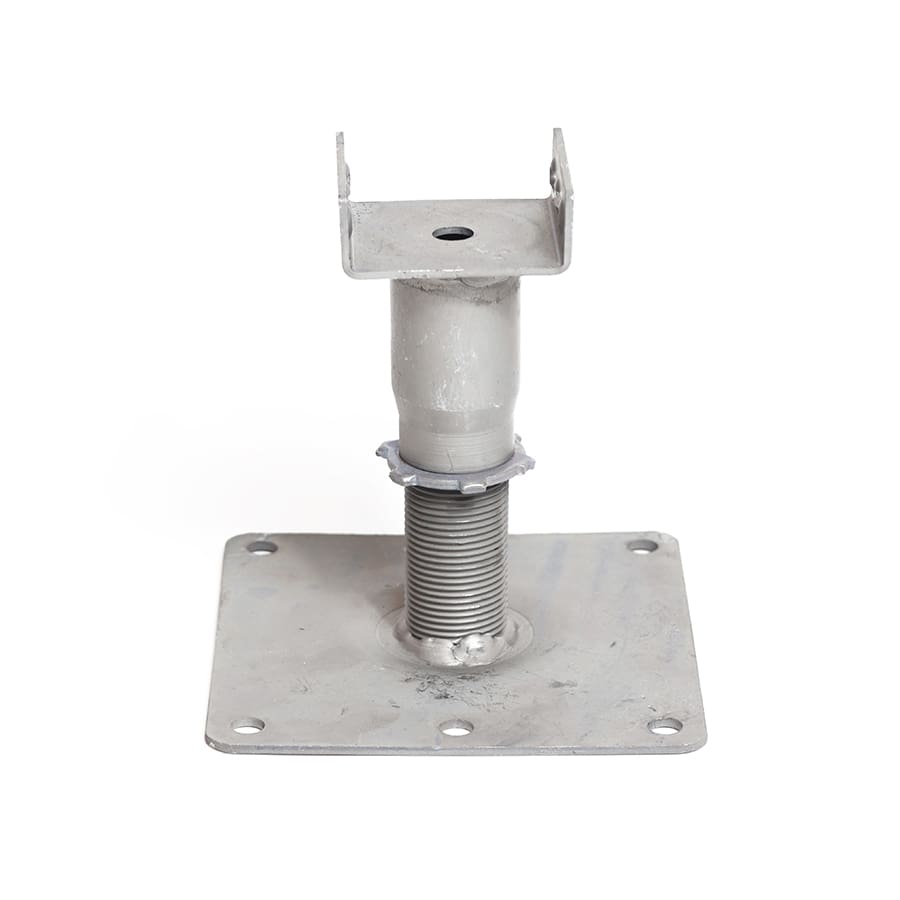

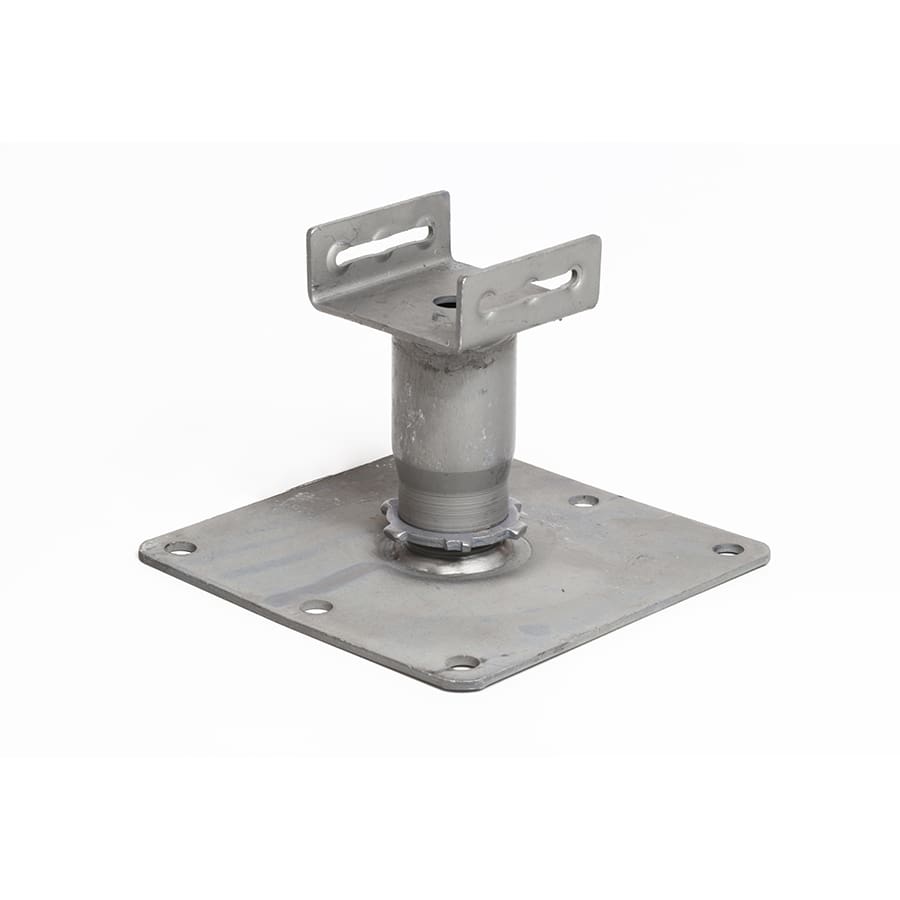

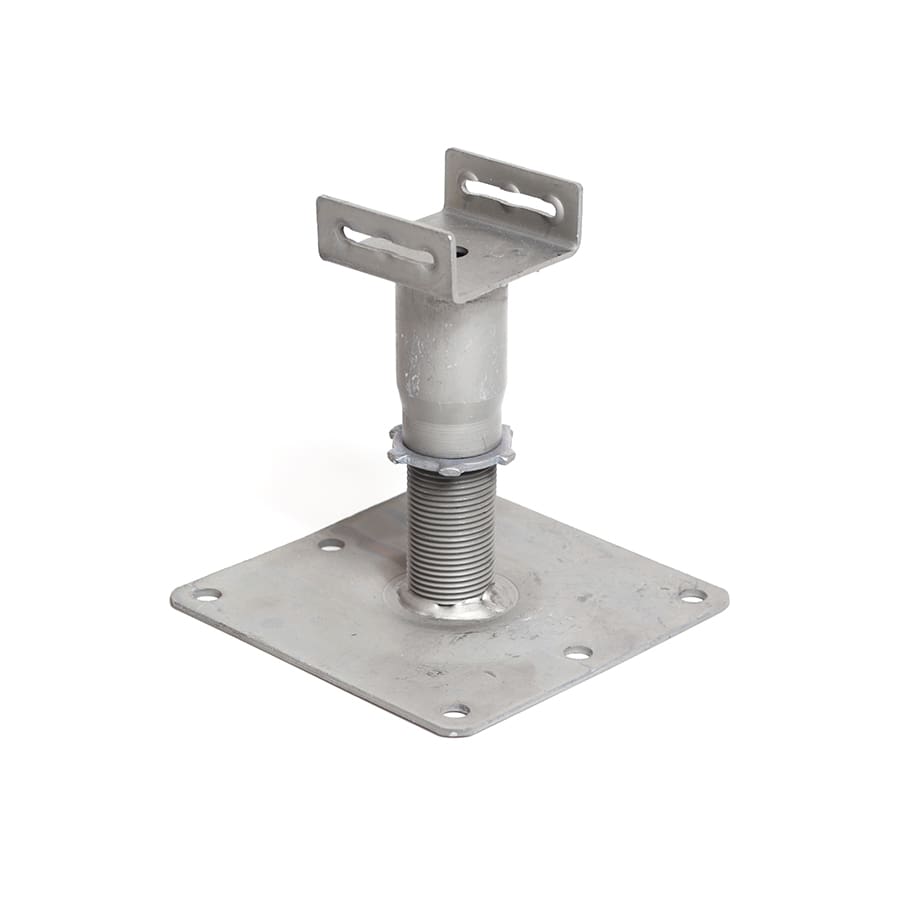

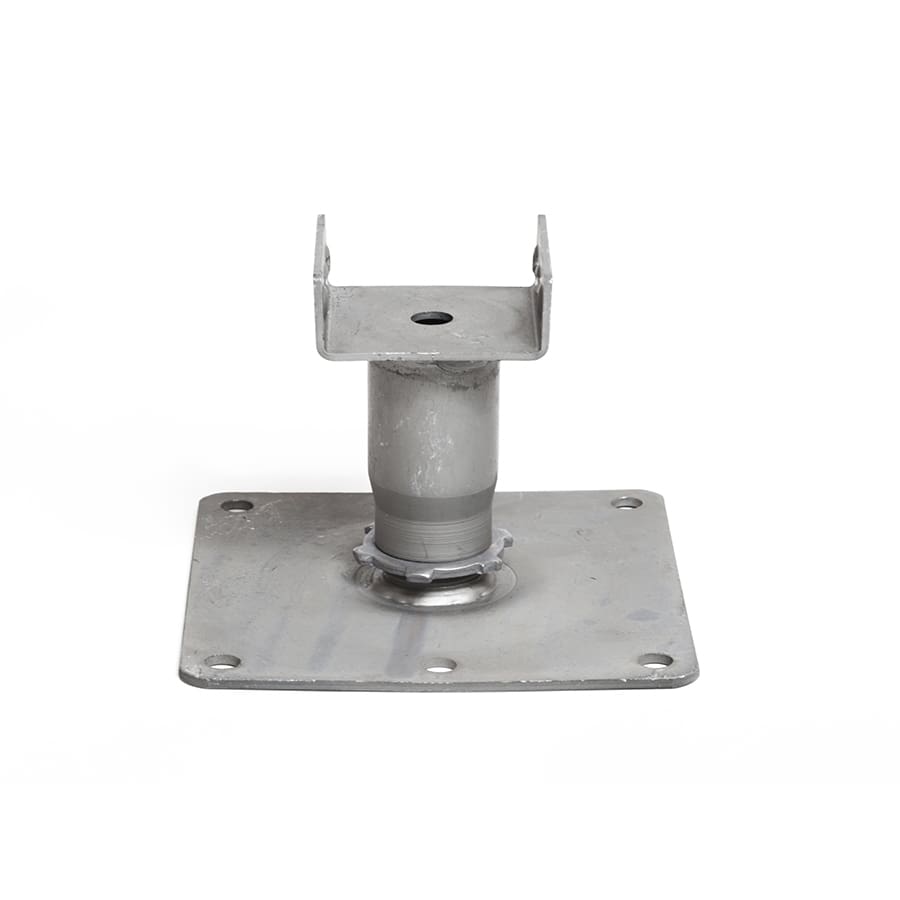

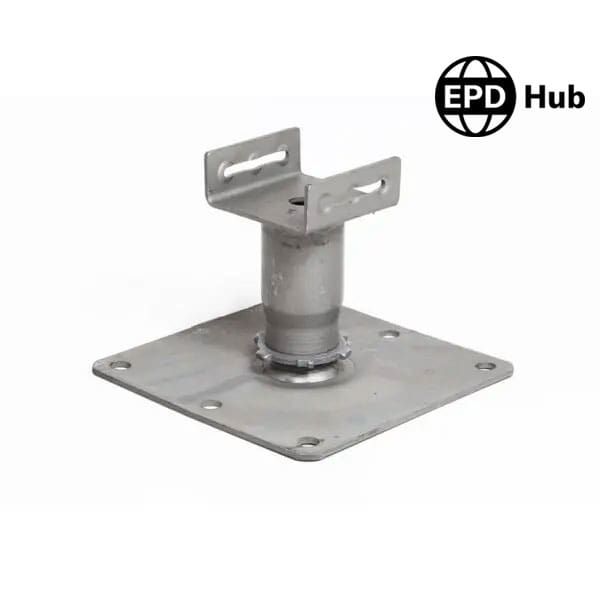

The RD-FR Non-Combustible Adjustable Joist Support Pedestal is a robust support for both joists and rails within RYNO’s decking and rail paving systems. Constructed from steel and zinc-nickel electroplated for corrosion resistance, this pedestal offers precise millimetric adjustment across a wide height range, providing a flexible yet sturdy solution.
- Supports for supporting DS Joists and RST Rails
- Locking ring ensures absolute stability
- Large height range available
- Ideal for terraces, podiums, roof decks, and inset balconies
- Holes in the base for optional fixing to the substrate
Compatible components
PHS
Pan-Head Screw
RST
Aluminium Paving Support Rail
DS
Aluminium Joist
Details
| Material | Zinc-nickel electroplated mild steel |
|---|---|
| Dimensions | Base size: 120x120mm |
| Height range | See “Part information” below |
| Weight | See “Part information” below |
| Joist width capacity | 48mm |
Performance
| Reaction to fire (BS EN 13501-1) | Inherently A1 (Decision 94-611/EC) |
|---|---|
| Compressive strength | 3200kg+ per pedestal |
| Allowable load | See “Compatible system” data |
| Biological and chemical | Resistant to moulds, algae, alkali, bitumen, UV |
| Warranty | 30 years* |
| Design life | 60 years |
*when used as part of a complete RYNO IGNO system
Part information
| Code | Adjustable height range | Weight (each) | Pack quantity |
|---|---|---|---|
| RD-FR-1 | Adjustable height range: 25-35mm | Weight (each): 0.38kg | Pack quantity: 25 |
| RD-FR-2 | Adjustable height range: 35-50mm | Weight (each): 0.41kg | Pack quantity: 25 |
| RD-FR-3 | Adjustable height range: 50-70mm | Weight (each): 0.44kg | Pack quantity: 25 |
| RD-FR-4 | Adjustable height range: 70-115mm | Weight (each): 0.49kg | Pack quantity: 25 |
| RD-FR-5 | Adjustable height range: 115-205mm | Weight (each): 0.61kg | Pack quantity: 25 |
| RD-FR-6 | Adjustable height range: 205-305mm | Weight (each): 0.72kg | Pack quantity: 18 |
| RD-FR-7 | Adjustable height range: 305-405mm | Weight (each): 0.84kg | Pack quantity: 18 |
| RD-FR-8 | Adjustable height range: 405-505mm | Weight (each): 0.93kg | Pack quantity: 18 |
Download
Datasheet
pdf 0.29 MB
RD-FR Joist Support Pedestal
