DS
Aluminium Joist
RDC-A

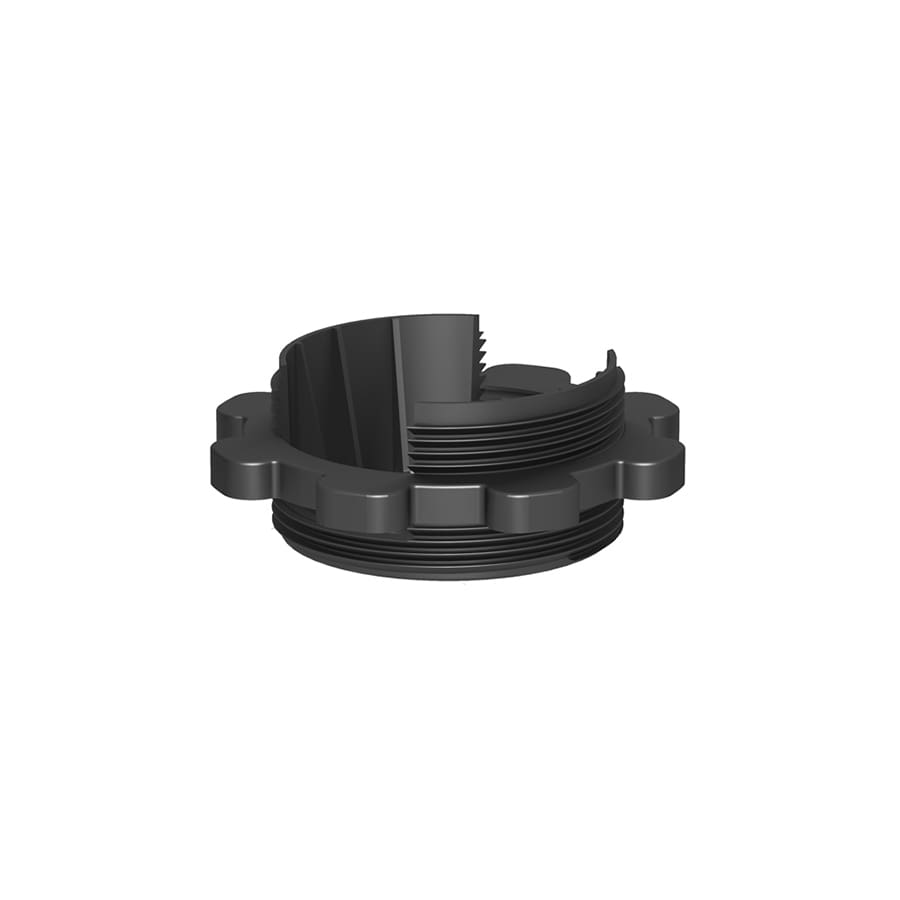

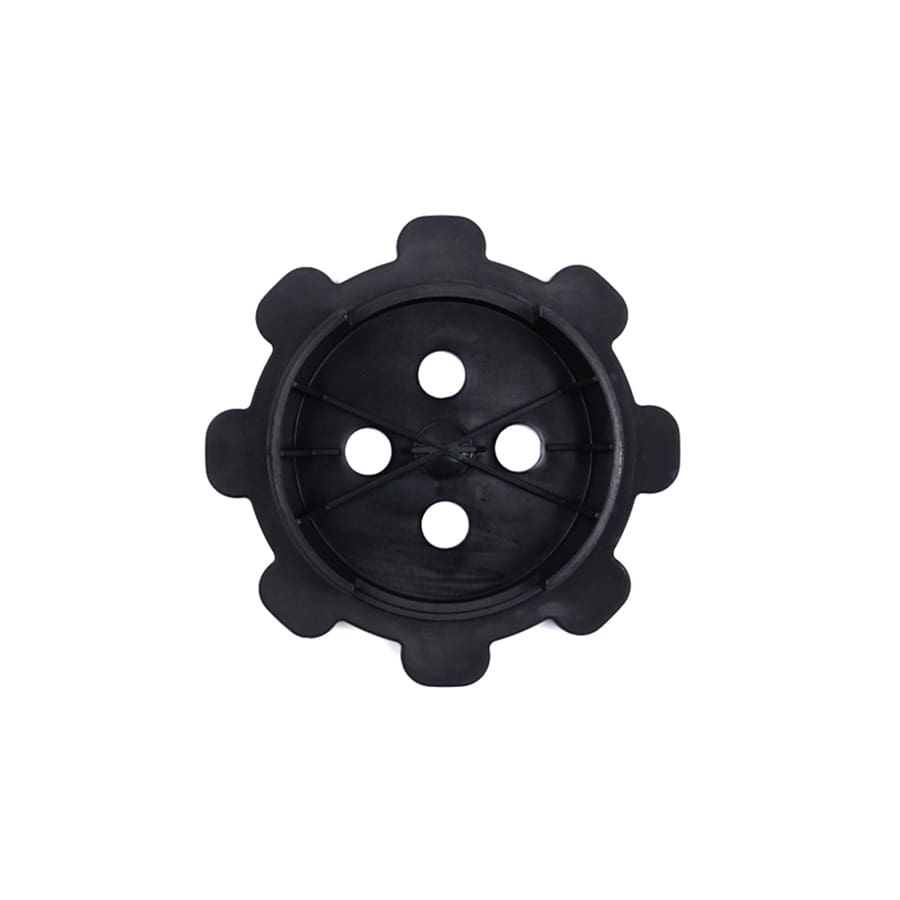

Adjustable Joist Cradle
£0.00
The Adjustable Joist Cradle is a low-height plastic adjustable pedestal designed to support DS aluminium joists in decking, railing, paving, and other flooring systems in both external and internal applications.
- Side walls locate joists quickly and prevent joists from moving
- Adjustment ring gives millimetre-perfect adjustment up to a build-up of 55mm
- Finger grips enable easy adjustment
Compatible components
BRSP
Base Rubber Shock Pad
Details
| Material | Recycled Nylon (glass filled) |
|---|---|
| Dimensions | Base size: 90mm (diameter) |
| Joist width capacity | 44-50mm |
Performance
| Compressive strength | 6kN/m2 (min. 6 cradles/m2) |
|---|---|
| Allowable load | See “Compatible system” data |
| Maximum spacing | 600mm centres |
| Biological and chemical | Resistant to moulds, algae, alkali, bitumen, UV |
| Warranty | 10 years* |
*when used as part of a complete RYNO system
Part information
| Part code | Height Range | Pack quantity |
|---|---|---|

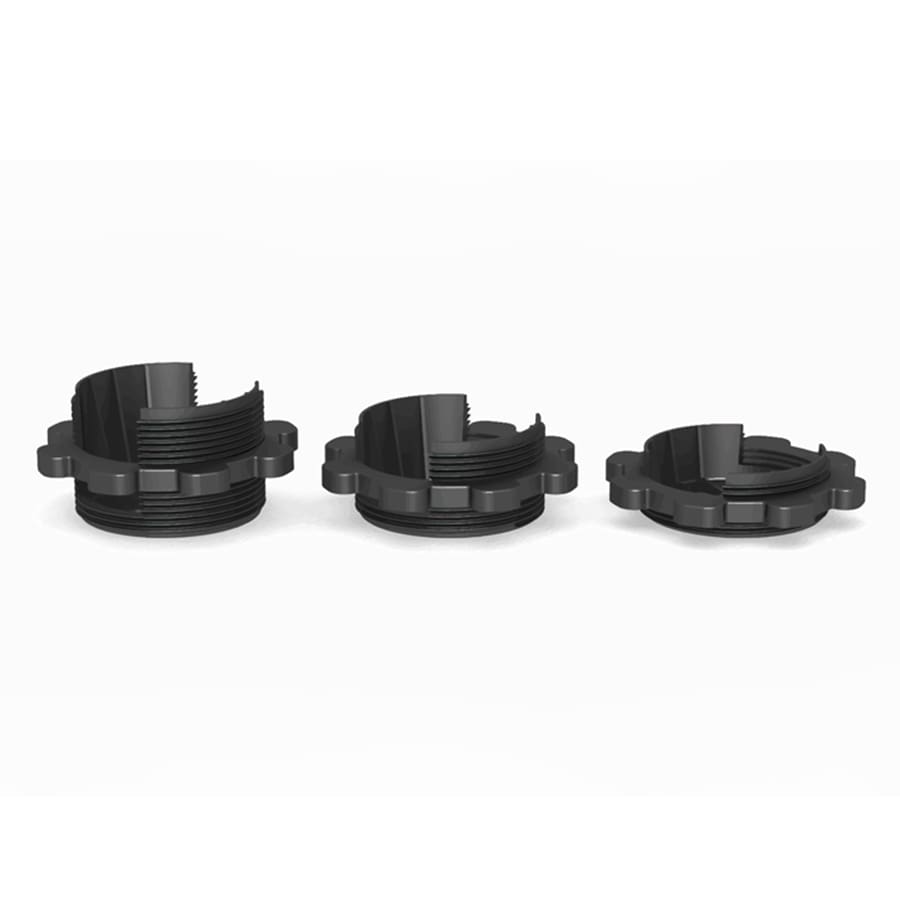

| RDC-A 10-25 | Height Range: 10-25mm | Pack quantity: n/a |
| RDC-A 10-40 | Height Range: 10-40mm | Pack quantity: 4050 |
| RDC-A 10-55 | Height Range: 10-55mm | Pack quantity: 3240 |
Download
Datasheet
pdf 0.26 MB
RDC-A Adjustable Joist Cradle
