System Overview - TerraSmart Pedestal IGNO
0.00 MB

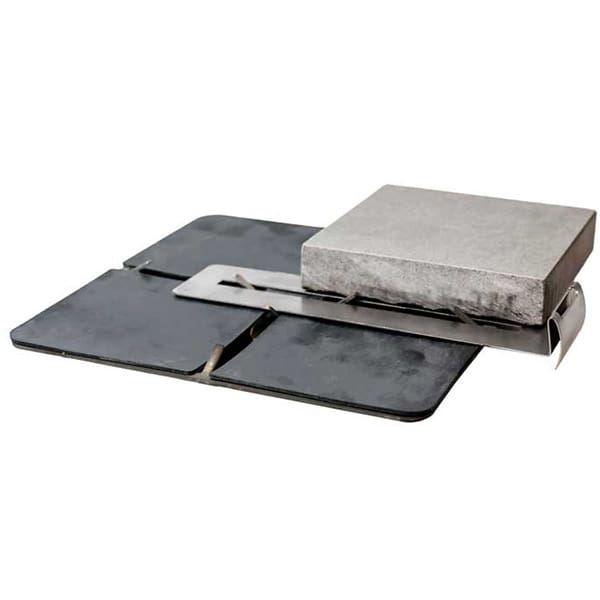

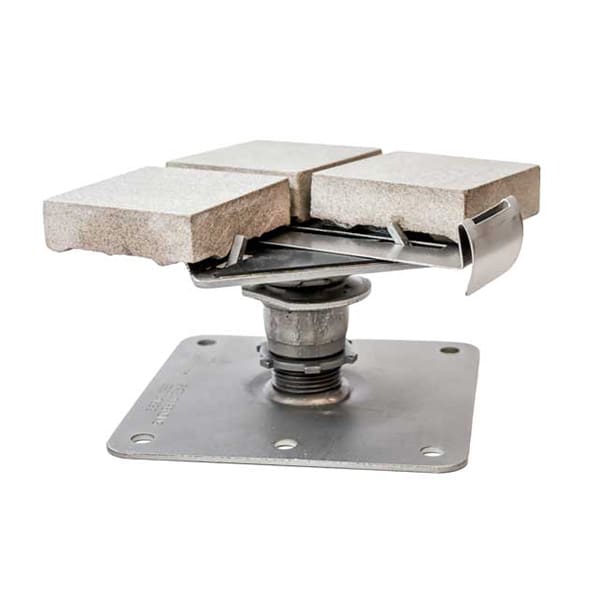

TerraSmart® Pedestal Paving System IGNO
£0.00
The TerraSmart® Pedestal system offers a high quality yet economical option for creating paving areas on terraces, inset balconies and other outdoor spaces.
The system is fully non-combustible, achieving a Euroclass A1 fire rating.
- Full system height build-up from just 30mm to over 500mm
- Unbeatably fast and simple two-step installation process
- High-quality paving finishes come in a range of styles and designs
- Enables efficient water drainage through paving
- Designed to create grid, stack and brick-bond paving areas
- Available with a visual wind uplift fixing
- 30-year warranty, 60-year design life*
*Valid when used as part of a complete RYNO IGNO system
Technical Information
| Reaction to Fire (to EN13501-1:2018) | A1 |
|---|---|
| System height range | 30mm to 525mm |
| Loading/compression | Concentrated load: 2kN Uniformly distributed: >4.0kN/m2 |
| Warranty | 30 years* |
| Design life | 60 years* |
