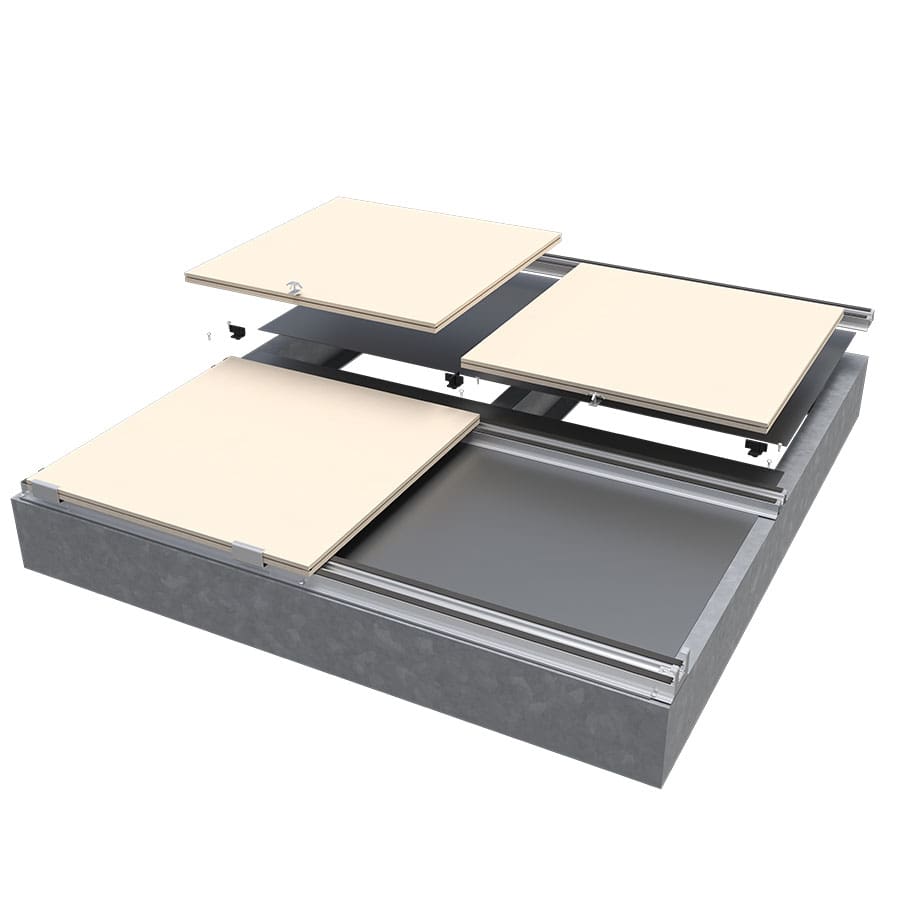

The system is supplied with hidden fixing mechanisms, which slide into the rails and feature a spring-loaded clamp assembly, to be used with RYNO wind-uplift kerfed tiles, and downturned tabs for a consistent 4mm gap between pavers. Tightening the screws clamps the paving to the rails and provides a successful countermeasure against the effects of wind uplift.

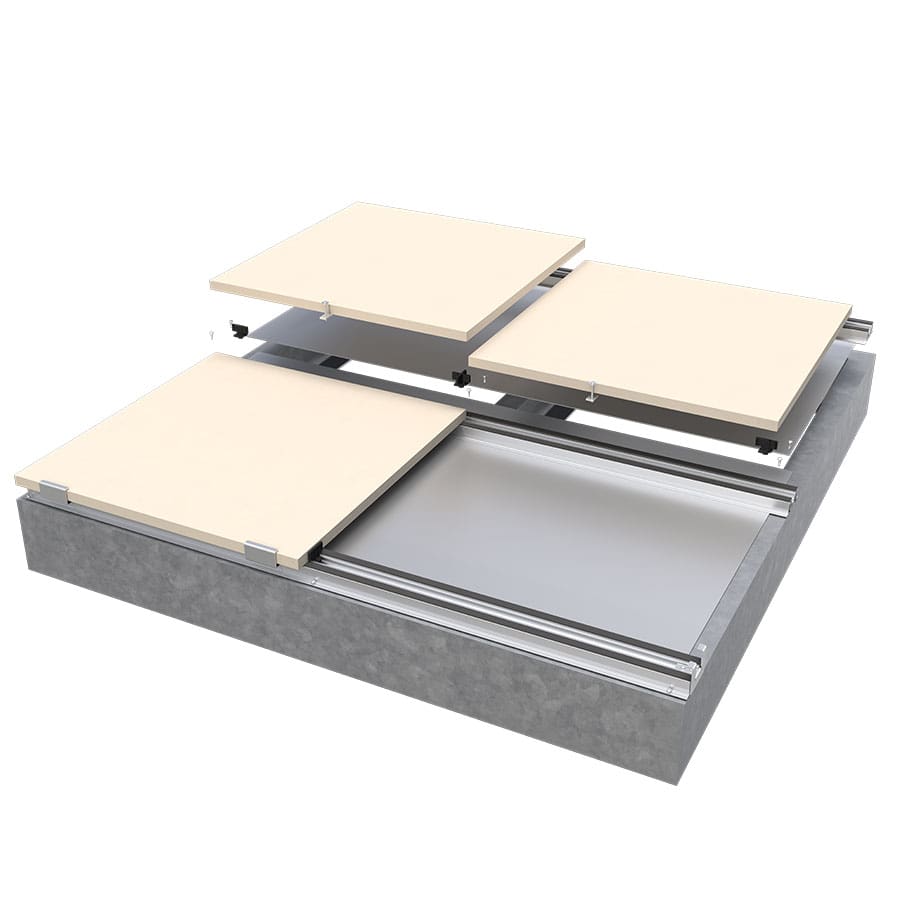

The system is supplied with discreet flange headed screws and washers to secure the tiles to the rail system via bespoke tapped holes. Tightening the screws clamps the paving to the rails and provides a successful countermeasure against the effects of wind uplift.
| Reaction to Fire (to EN13501-1) | A1 |
|---|---|

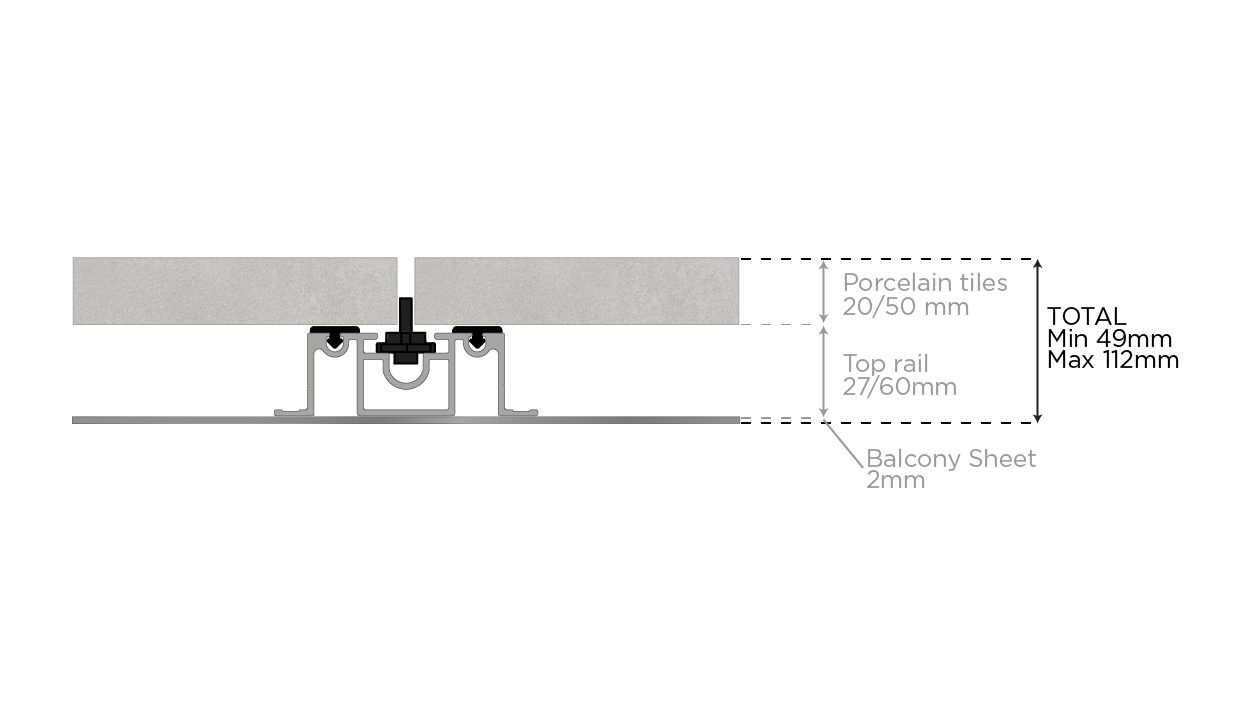

| Height range | 49-112mm |
| Loading/compression (to EN 1991-1:2002) | Concentrated/point load 2kN Uniformly distributed 4.0kN/m² |
| Approx. system weight range (with 20mm porcelain paving) | 52.6 – 53.3kg/m2 |
| Warranty | 30 years* |
| Design Life | 60 years* |
