TerraSmart® Rail Paving System

Premium, versatile paving system for waterproofed substrates, where non-combustibility isn’t required

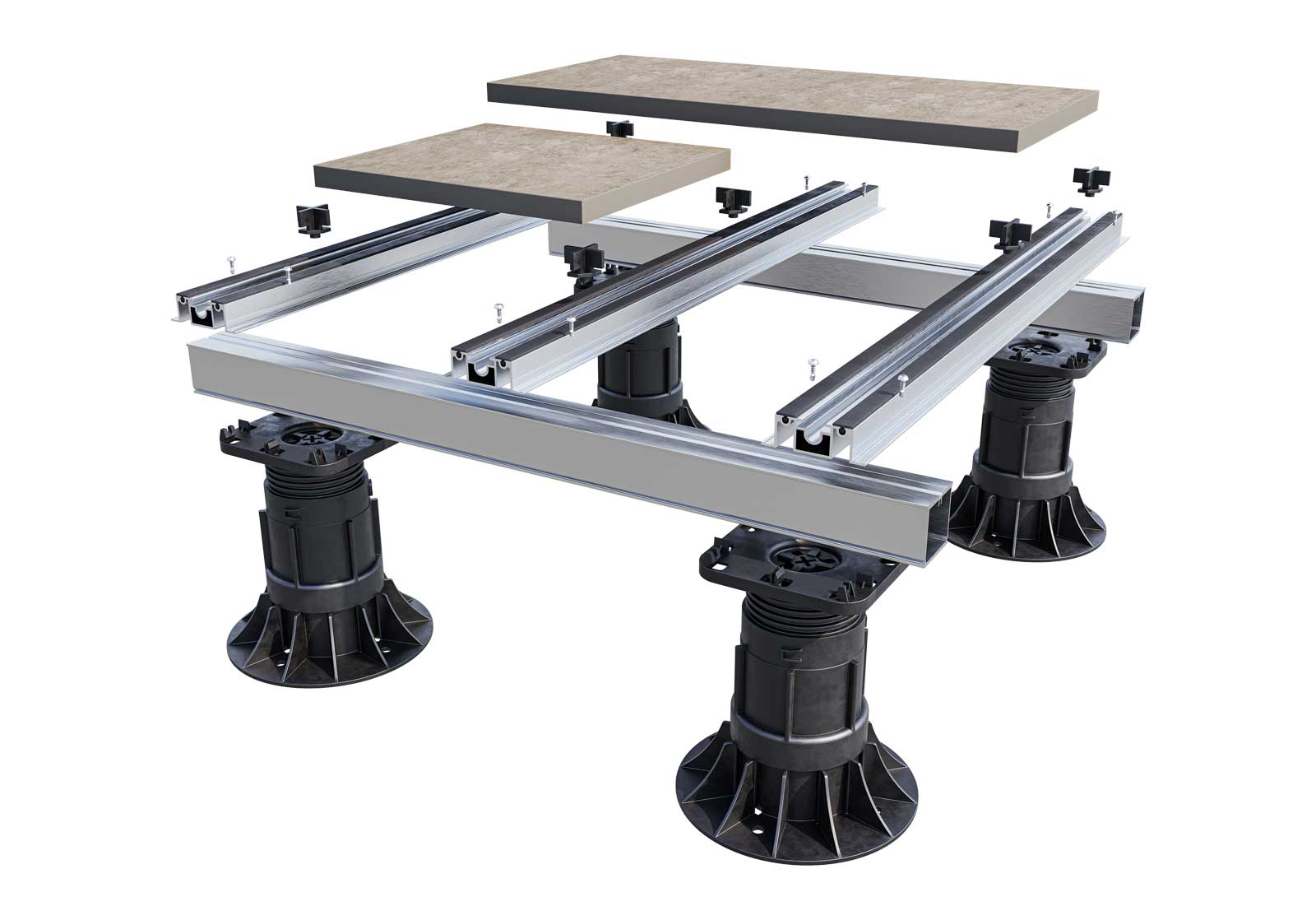

TerraSmart Rail Conventional

System variants

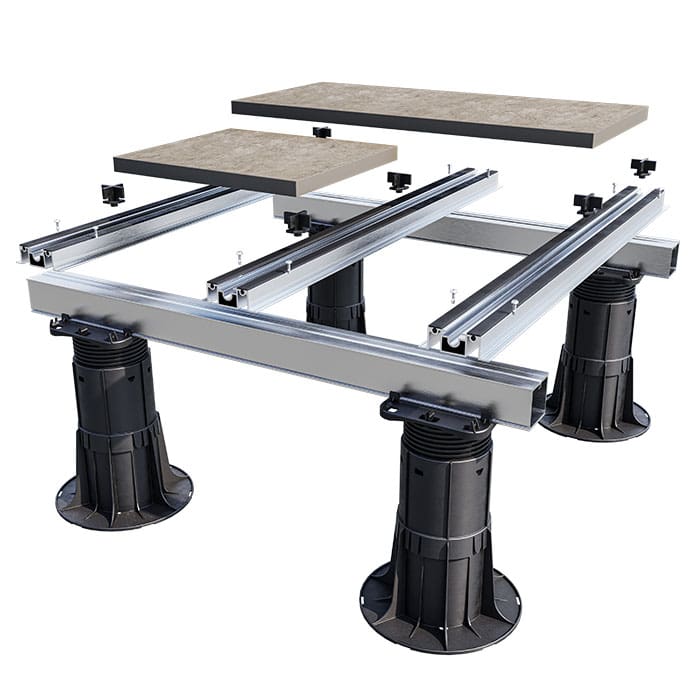

Lattice Frame

The Lattice Frame variant is the ultimate raised terrace system providing continuous and locked-in paver support. Catering to a wide range of paving layouts the lattice build-up offers outstanding lateral stability.

  • The gold standard in raised terrace support
  • Continuous lattice framework provides unrivalled stability
  • Maximum versatility

Downloads

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

System overview pdf 2.16MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

Install guide pdf 1.58MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

Technical drawings zip 1.92MB

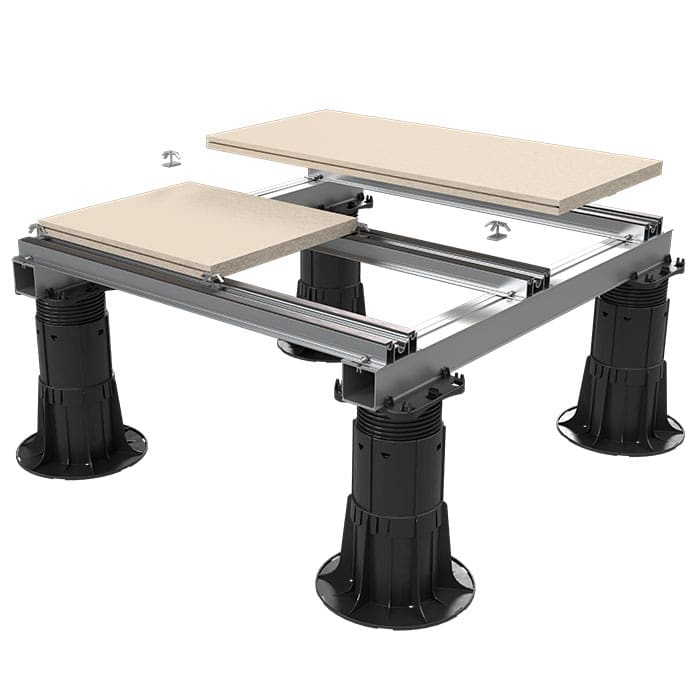

Hidden Wind Uplift Restraint

The Hidden Wind Uplift Restraint is specifically for areas with high wind loads. To ensure sufficient wind uplift mitigation, project specific calculations are recommended. RYNOâ„¢ can assist with these calculations – let’s discuss.

  • Suitable for high-wind applications
  • Hidden mechanical restraint mechanism
  • Pavers removable for maintenance

Downloads

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

System overview pdf 2.16MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

Technical drawings zip 2.14MB

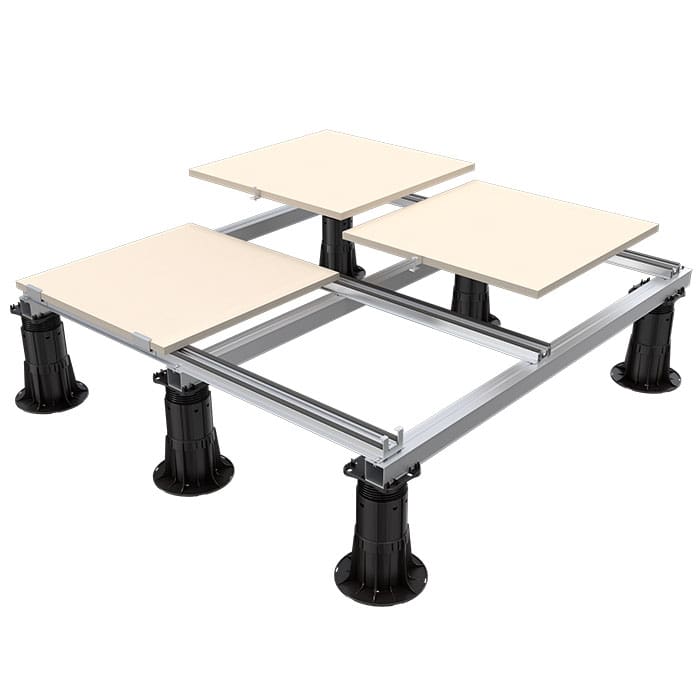

Visual Wind Uplift Restraint

The Visual Wind Uplift Restraint is the economical option for areas with high wind loads. To ensure sufficient wind uplift mitigation, project specific calculations are recommended. RYNOâ„¢ can assist with these calculations – let’s discuss.

  • Suitable for high-wind applications
  • Subtle, low cost mechanical restraint mechanism
  • Pavers removable for maintenance

Downloads

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

System overview pdf 2.16MB

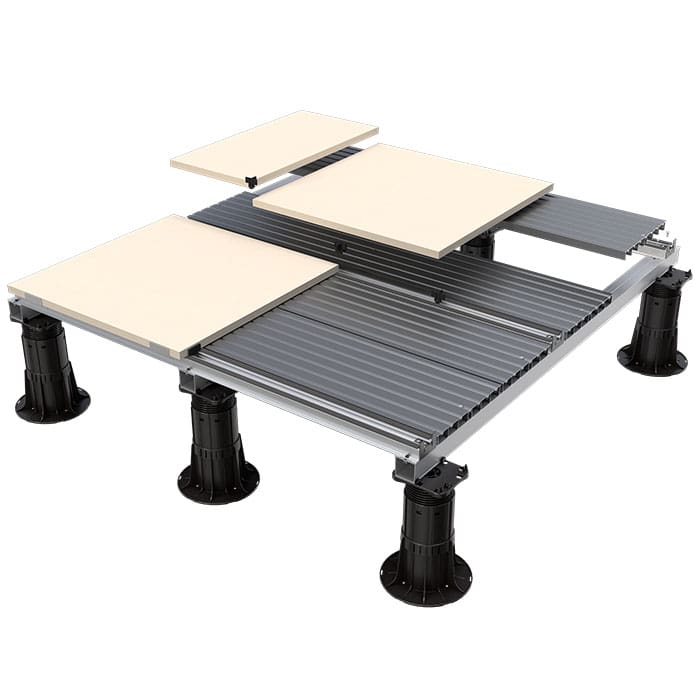

Baseboard

The Baseboard variant is a versatile solution that transforms the rail system into a complete sub-floor. Designed for use in localised areas or across a terrace to support planters, other flooring materials or small paving cuts.

  • Supports planters and other flooring surfaces
  • Creates a fall restraint layer for high-load applications
  • Supports small cuts and edge details

Downloads

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

System overview pdf 2.16MB
Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

Technical drawings zip 2.29MB

Technical Information

System height range65-1187mm
Loading/compressionConcentrated load: 1.4kN Uniformly distributed: >4.0kN/m2
Warranty10 years

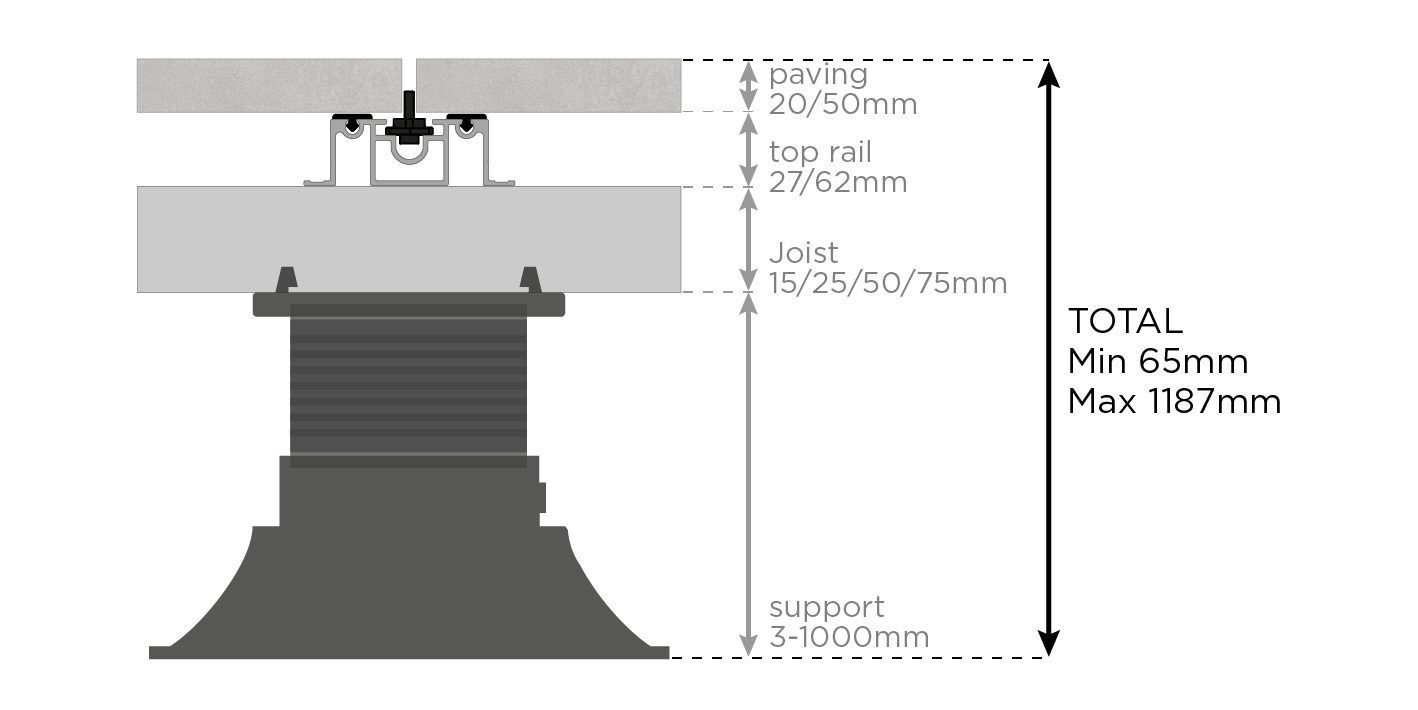

System Height Build Up

Download

System Overview – TerraSmart Rail

pdf 2.16 MB

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

Download

Install Guide – TerraSmart Rail

pdf 1.58 MB

Download form

Fields marked with an asterisk (*) are compulsory and must be completed.

Download
